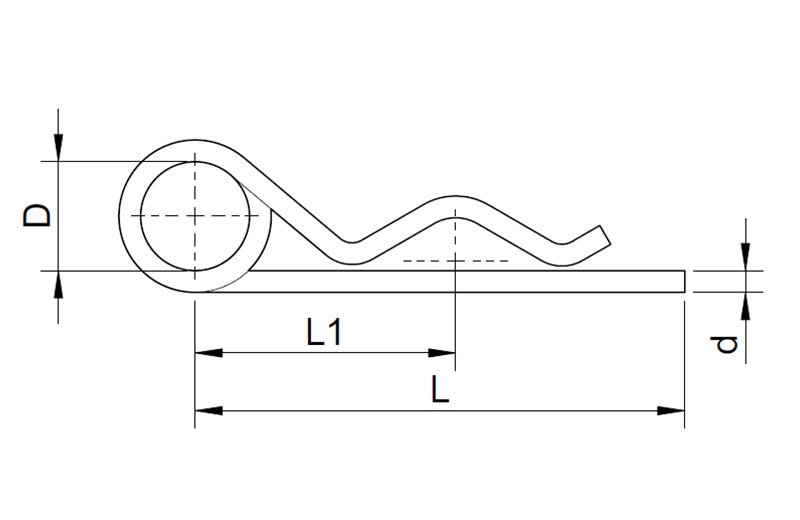

| Art No. | SIZE | d | L | L1 | D |
| mm | mm | mm | mm | mm | |
| S.RG10-02 | 2 | 2 | 50 | 25 | 10 |
| S.RG10-03 | 3 | 3 | 62 | 32 | 16 |
| S.RG10-04 | 4 | 4 | 78 | 44 | 23 |
| S.RG10-05 | 5 | 5 | 92 | 50 | 26 |
| S.RG10-06 | 6 | 6 | 120 | 70 | 30 |
| S.RG10-07 | 7 | 7 | 130 | 72 | 30 |
| S.RG10-08 | 8 | 8 | 130 | 76 | 30 |
Stainless Steel AISI316 or AISI304
| Art No. | SIZE | d | L | L1 | D |
| mm | mm | mm | mm | mm | |
| S.RG10-02 | 2 | 2 | 50 | 25 | 10 |
| S.RG10-03 | 3 | 3 | 62 | 32 | 16 |
| S.RG10-04 | 4 | 4 | 78 | 44 | 23 |
| S.RG10-05 | 5 | 5 | 92 | 50 | 26 |
| S.RG10-06 | 6 | 6 | 120 | 70 | 30 |
| S.RG10-07 | 7 | 7 | 130 | 72 | 30 |
| S.RG10-08 | 8 | 8 | 130 | 76 | 30 |
