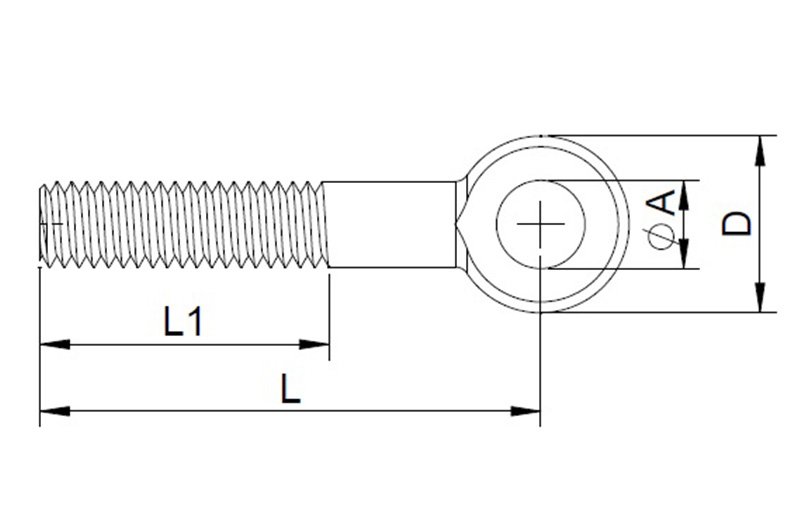

| Art No. | SIZE | A | D | L1 | L |
| mm | mm | mm | mm | mm | |
| S.EB11-05 | M5 | 5 | 12 | 30 | 80 |
| S.EB11-06 | M6 | 6 | 14 | 35 | 90 |
| S.EB11-08 | M8 | 8 | 18 | 40 | 140 |
| S.EB11-10 | M10 | 10 | 20 | 45 | 150 |
| S.EB11-12 | M12 | 12 | 25 | 55 | 200 |
| S.EB11-16 | M16 | 16 | 32 | 65 | 260 |
| S.EB11-18 | M20 | 18 | 40 | 100 | 260 |
| S.EB11-22 | M24 | 22 | 45 | 100 | 260 |

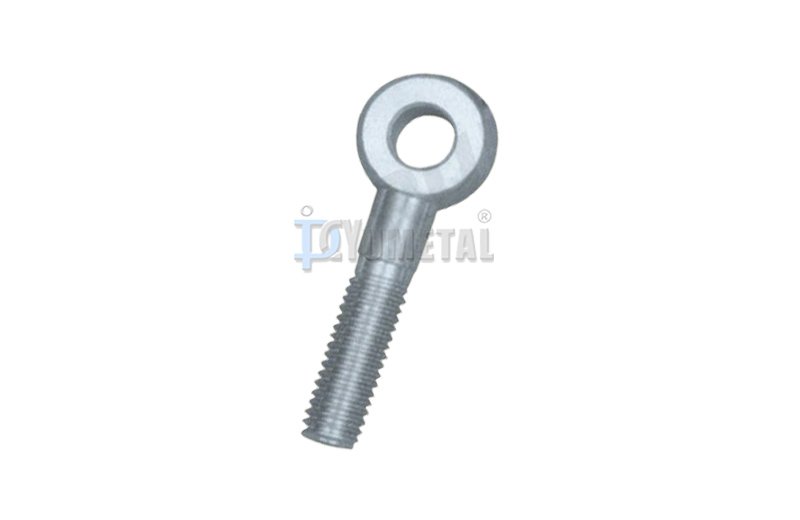

Stainless Steel AISI316 or AISI304, Forged
| Art No. | SIZE | A | D | L1 | L |
| mm | mm | mm | mm | mm | |
| S.EB11-05 | M5 | 5 | 12 | 30 | 80 |
| S.EB11-06 | M6 | 6 | 14 | 35 | 90 |
| S.EB11-08 | M8 | 8 | 18 | 40 | 140 |
| S.EB11-10 | M10 | 10 | 20 | 45 | 150 |
| S.EB11-12 | M12 | 12 | 25 | 55 | 200 |
| S.EB11-16 | M16 | 16 | 32 | 65 | 260 |
| S.EB11-18 | M20 | 18 | 40 | 100 | 260 |
| S.EB11-22 | M24 | 22 | 45 | 100 | 260 |
