S.UB01 U Bolt with Security Protection

Products

S.UB01
SUB01

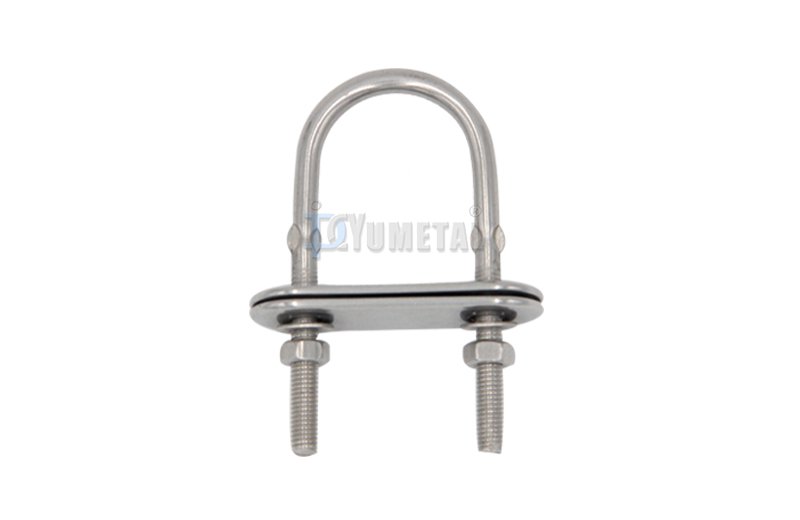

S.UB01 U Bolt with Security Protection

with One Plate & Double Washers & Double Nuts,or with Double Plates & Double Nut, assemble as per client request.Stainless Steel AISI316 or AISI304

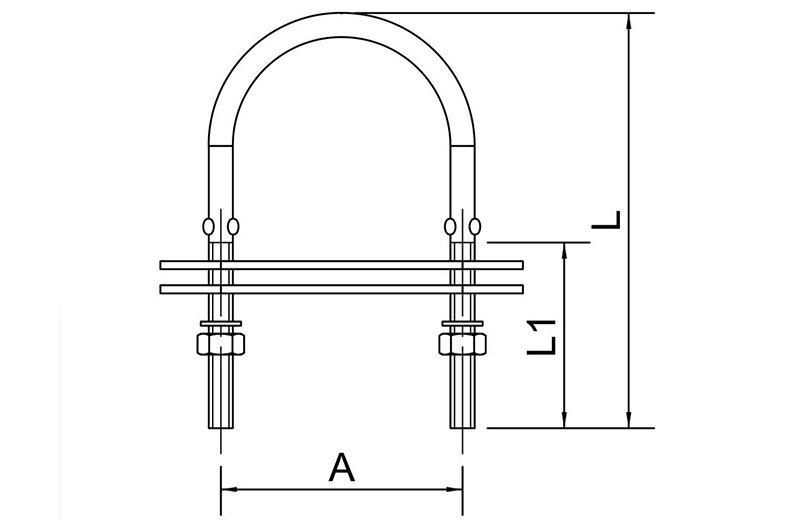

Technical parameters

Art No.SIZEALL1BLWeight
mmmmmmmmtonskg/pc
S.UB01-0464M43064300.75 0.024
S.UB01-0580M53580400.90 0.035
S.UB01-0680M63580401.25 0.050
S.UB01-0690M63590401.25 0.055
S.UB01-0860M83560251.75 0.070
S.UB01-0870M83570351.75 0.075
S.UB01-0880M83580401.75 0.080
S.UB01-0890M83590501.75 0.090
S.UB01-08100M835100501.75 0.100
S.UB01-08110M835110701.75 0.110
S.UB01-1090M105090403.50 0.150
S.UB01-10130M1050130553.50 0.210
S.UB01-12150M1260150655.10 0.350
