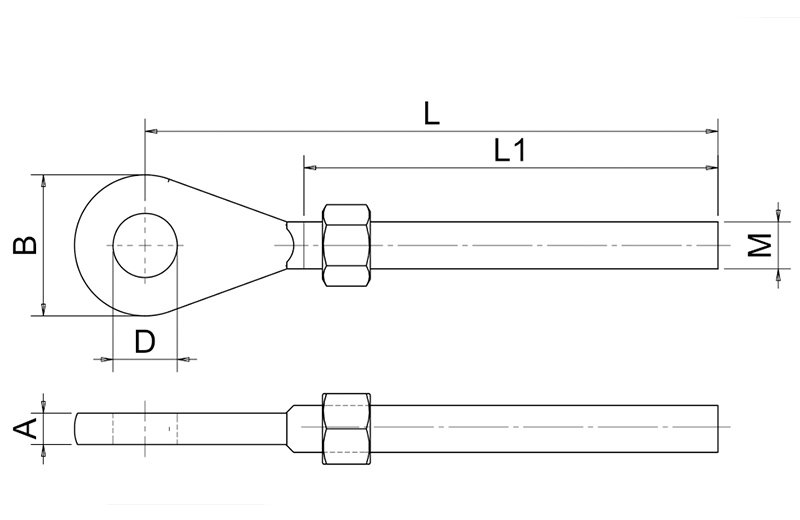

| Art No. | SIZE | A | B | D | L | L1 | BL | Weight |
| mm | mm | mm | mm | mm | mm | tons | kg/pc | |
| S.RS31-05 | M5 | 3 | 12 | 5.5 | 63 | 42 | 0.8 | 0.025 |
| S.RS31-06 | M6 | 4 | 14 | 6.5 | 65 | 48 | 1.25 | 0.032 |
| S.RS31-08 | M8 | 5 | 17 | 8.5 | 78 | 56 | 2.35 | 0.068 |
| S.RS31-10 | M10 | 6 | 22 | 10.5 | 90 | 63 | 3.5 | 0.082 |
| S.RS31-12 | M12 | 8 | 25 | 13.0 | 110 | 80 | 5.1 | 0.100 |
| S.RS31-14 | M14 | 9 | 28 | 13.0 | 124 | 90 | 5.9 | 0.187 |
| S.RS31-16 | M16 | 10 | 31 | 14.5 | 133 | 100 | 8 | 0.237 |
| S.RS31-20 | M20 | 15 | 40 | 19.5 | 164 | 119 | 13 | 0.406 |
