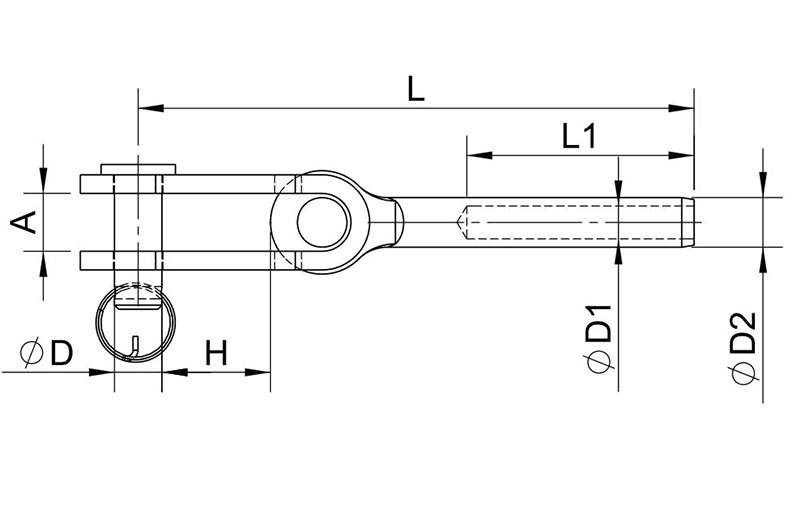

| Art No. | SIZE | WIRE | A | D | H | D1 | D2 | L | L1 | BL | Weight |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | tons | kg/pc | |
| S.RS22-03 | 3 | 3 | 8 | 6 | 13 | 3.3 | 6.35 | 81 | 36 | 1.3 | 0.034 |
| S.RS22-04 | 4 | 4 | 10 | 8 | 16 | 4.3 | 7.5 | 94 | 39 | 2.35 | 0.064 |
| S.RS22-05 | 5 | 5 | 12 | 9 | 20 | 5.3 | 9 | 116 | 50 | 3.5 | 0.138 |
| S.RS22-06 | 6 | 6 | 18 | 12 | 25 | 6.4 | 12.6 | 135 | 62 | 4.1 | 0.273 |
| S.RS22-07 | 7 | 7 | 18 | 12 | 25 | 7.4 | 14.2 | 157 | 68 | 6.2 | 0.355 |
| S.RS22-08 | 8 | 8 | 17 | 16 | 29 | 8.4 | 16 | 170 | 85 | 6.2 | 0.375 |
| S.RS22-10 | 10 | 10 | 20 | 19 | 30 | 10.5 | 18 | 192 | 90 | 9.8 | 0.645 |
| S.RS22-12 | 12 | 12 | 26 | 22 | 35 | 12.6 | 20 | 240 | 105 | 13 | 1.030 |
| S.RS22-14 | 14 | 14 | 26 | 22 | 35 | 14.7 | 25 | 277 | 140 | 17 | 1.700 |
| S.RS22-16 | 16 | 16 | 29 | 25 | 40 | 16.9 | 28 | 313 | 160 | 24 | 2.650 |
| S.RS22-19 | 19 | 19 | 34 | 28 | 46 | 20 | 34.5 | 399 | 200 | 25.5 | 5.700 |
| S.RS22-22 | 22 | 22 | 40 | 32 | 54 | 23.2 | 40.5 | 463 | 230 | 31 | 6.120 |
| S.RS22-26 | 26 | 26 | 44 | 36 | 62 | 27.5 | 46 | 518 | 280 | 43 | 7.500 |
