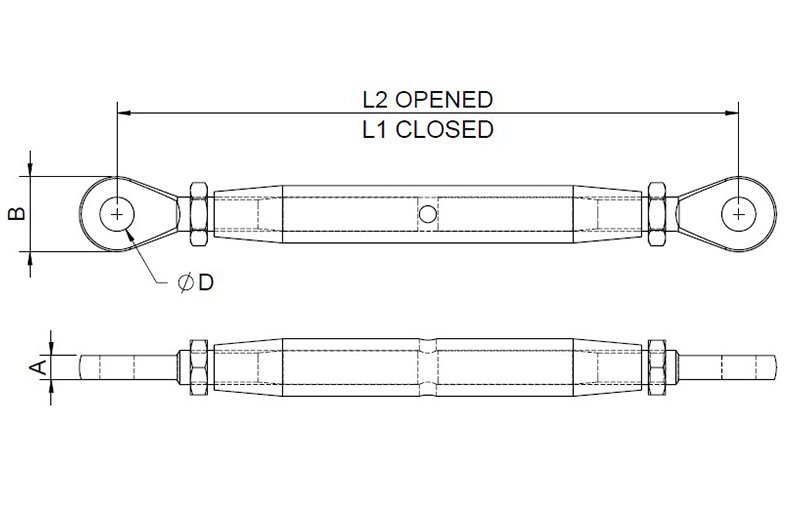

| Art No. | SIZE | A | B | D | L1 | L2 | BL | Weight |
| mm | mm | mm | mm | mm | mm | tons | kg/pc | |
| S.RS13-05 | M5 | 3 | 12 | 5.5 | 130 | 190 | 0.80 | 0.04 |
| S.RS13-06 | M6 | 4 | 14 | 6.5 | 140 | 210 | 1.30 | 0.11 |
| S.RS13-08 | M8 | 5 | 17 | 8.5 | 160 | 235 | 2.35 | 0.14 |
| S.RS13-10 | M10 | 6 | 22 | 10.5 | 190 | 280 | 3.50 | 0.23 |
| S.RS13-12 | M12 | 8 | 25 | 13 | 225 | 340 | 5.10 | 0.38 |
| S.RS13-14 | M14 | 9 | 28 | 13 | 250 | 370 | 5.90 | 0.51 |
| S.RS13-16 | M16 | 10 | 31 | 14.5 | 275 | 415 | 8.00 | 0.73 |
| S.RS13-20 | M20 | 15 | 40 | 19.5 | 330 | 480 | 13.00 | 1.05 |
| S.RS13-22 | M22 | 18 | 47 | 23 | 416 | 597 | 17.00 | 3.54 |
| S.RS13-24 | M24 | 20 | 53 | 26 | 480 | 713 | 20.00 | 6.40 |
| S.RS13-27 | M27 | 25 | 65 | 28.5 | 527 | 759 | 27.00 | 7.10 |
| S.RS13-30 | M30 | 30 | 70 | 33 | 581 | 861 | 31.00 | 9.91 |
| S.RS13-36 | M36 | 30 | 80 | 36 | 618 | 892 | 43.00 | 12.88 |
