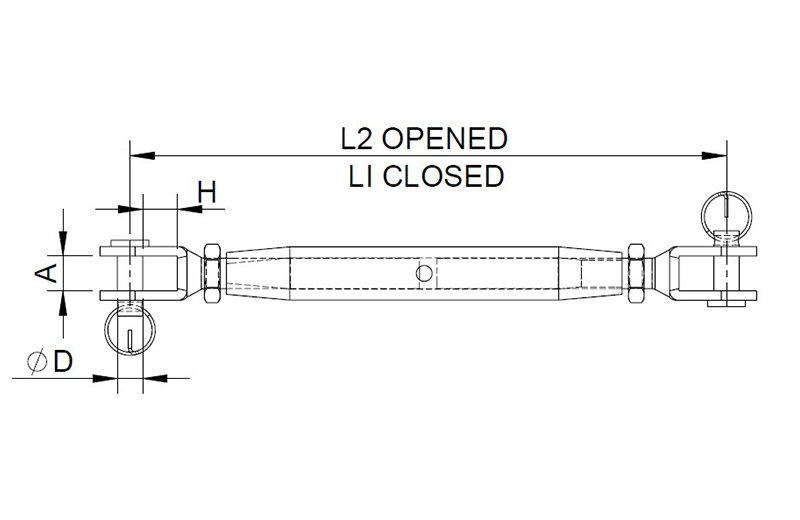

| Art No. | SIZE | A | D | H | L1 | L2 | BL | Weight |
| mm | mm | mm | mm | mm | mm | tons | kg/pc | |
| S.RS01-04 | M4 | 5 | 4 | 8 | 110 | 170 | 0.50 | 0.036 |
| S.RS01-05 | M5 | 6.5 | 5 | 10 | 130 | 190 | 0.80 | 0.056 |
| S.RS01-06 | M6 | 7.5 | 6 | 10 | 150 | 220 | 1.25 | 0.086 |
| S.RS01-08 | M8 | 11 | 8 | 11 | 165 | 240 | 2.35 | 0.155 |
| S.RS01-10 | M10 | 12 | 9 | 14 | 190 | 280 | 3.50 | 0.280 |
| S.RS01-12 | M12 | 14 | 12 | 20 | 245 | 360 | 5.10 | 0.530 |
| S.RS01-14 | M14 | 15 | 12 | 22 | 270 | 390 | 5.90 | 0.650 |
| S.RS01-16 | M16 | 17 | 16 | 26 | 310 | 450 | 8.00 | 1.18 |
| S.RS01-20 | M20 | 20 | 19 | 30 | 360 | 510 | 13.00 | 2.03 |
| S.RS01-22 | M22 | 30 | 22 | 46.5 | 472 | 653 | 17.00 | 4.48 |
| S.RS01-24 | M24 | 30 | 25 | 49 | 520 | 750 | 20.00 | 6.38 |
| S.RS01-27 | M27 | 34 | 28 | 54 | 595 | 830 | 25.50 | 7.52 |
| S.RS01-30 | M30 | 40 | 32 | 62 | 660 | 915 | 31.00 | 9.48 |
| S.RS01-36 | M36 | 44 | 36 | 70 | 730 | 1000 | 43.00 | 13.66 |
