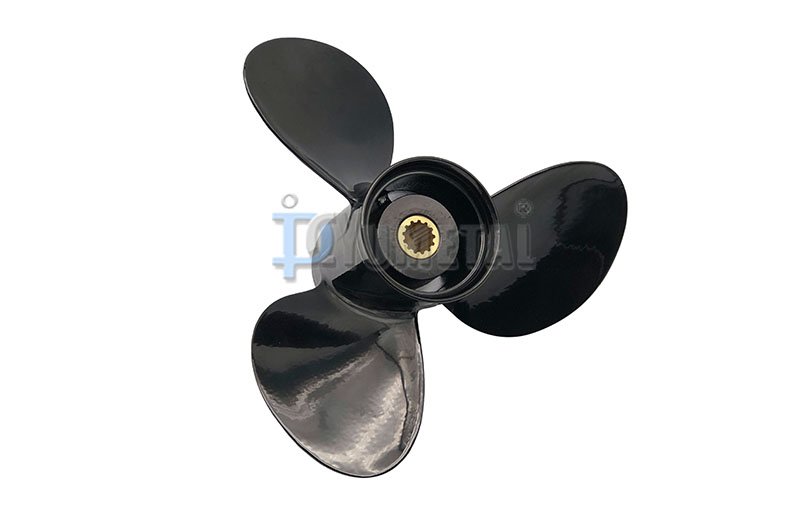

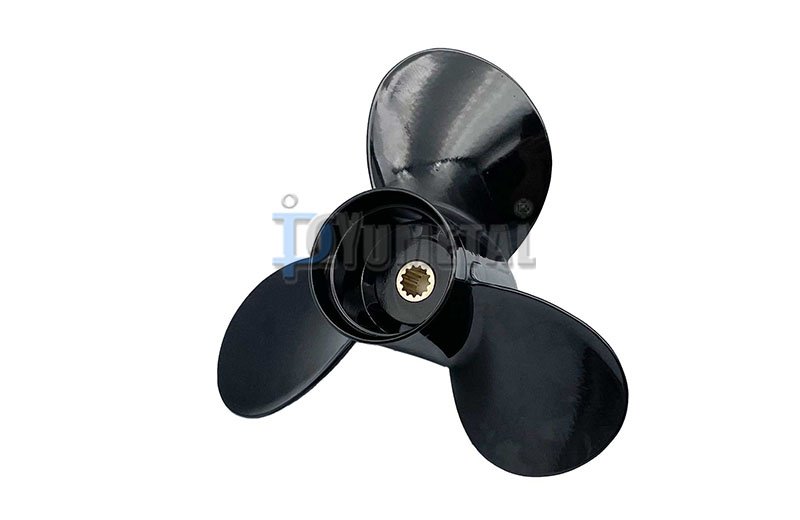

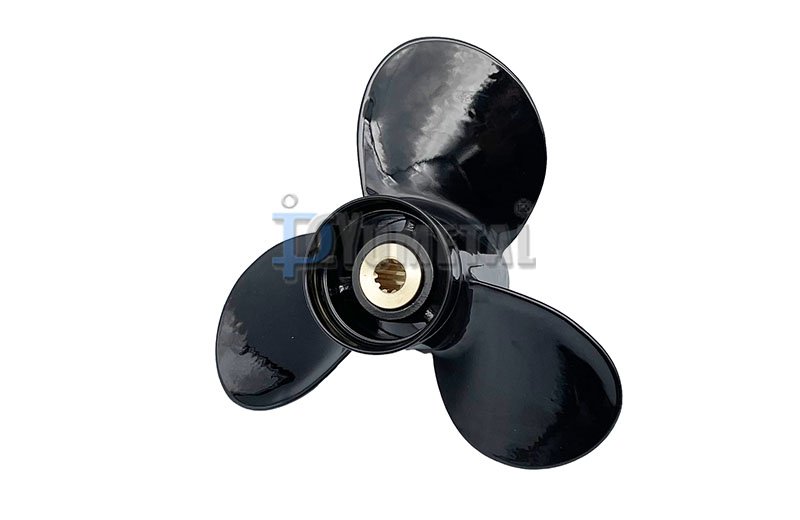

AL.M07 BRP,JOHNSON,EVINRUDE,OMC STERN DRIVE ALUMINUM

AL.M07 BRP,JOHNSON,EVINRUDE,OMC STERN DRIVE ALUMINUM


Technical parameters

Engine HP&the year Drive TypeOEM #No. BladeDiam.PitchRotation
8-15HP
2-1/2" Gearcase
8HP(4 Stroke)…1996-2005

9.9,15HP(2 Stroke)…

1974-200512HP ...

2012 - Newer

9.9,15HP(4 Stroke)…1995-2001
A GROUP

13 tooth spline

SEMA Series
AL.M0701-9 1/4-7-RH39 1/47RH
AL.M0701-9 1/4-8-RH39 1/48RH
AL.M0701-9 1/4-9-RH39 1/49RH
AL.M0701-9 1/4-10-RH39 1/410RH
AL.M0701-9 1/4-11-RH39 1/411RH
AL.M0701-9 1/4-12-RH39 1/412RH
9.9-15HP
2-1/2" Gearcase
9.9-15HP(4 Stroke)...2002-2007
Original Suzuki
A GROUP

10 tooth spline

SEMA Series
AL.M0702-9 1/4-7-RH39 1/47RH
AL.M0702-9 1/4-8-RH39 1/48RH
AL.M0702-9 1/4-9-RH39 1/49RH
AL.M0702-9 1/4-10-RH39 1/410RH
AL.M0702-9 1/4-11-RH39 1/411RH
AL.M0702-9 1/4-12-RH39 1/412RH
15-35HP
3" Gearcase
15HP E-TEC H.O…2011-newer
20HP 2 Cyl…1984-1997
25HP(Commercial)…1993-2005
25HP 2&3 Cyl…1984-newer
25HP E-TEC…2009-newer
30HP 2 Cyl…1984-newer
30HP E-TEC…2009-newer
35HP 2 Cyl…1979-1983
35HP 3 Cyl…1997-2001
B GROUP

14 tooth spline

SEMA Series
AL.M0703-10 1/4-9-RH310 1/49RH
AL.M0703-10 1/4-10-RH310 1/410RH
AL.M0703-10 1/4-11-RH310 1/411RH
AL.M0703-10 1/4-12-RH310 1/412RH
AL.M0703-10 1/4-13-RH310 1/413RH
AL.M0703-10 1/4-14-RH310 1/414RH
AL.M0703-10 1/4-15-RH310 1/415RH
40-75 HP
3-3/8" Gearcase
40 HP...1984-2005
48 HP...1987-1996
50 HP...1975-2005
55 HP...1976-1979
60/65 HP...1980-1985
75 HP...1975-1985
Sprint...1986-1992
Formula E...1986-1992
C GROUP

13 tooth spline

Stella Series
AL.M0704-12 1/2-13-RH312 1/213RH
AL.M0704-12 1/4-15-RH312 1/415RH
40-140HP
4-1/4" Gearcase
40HP E-TEC…2004-newer
45HP 2 Cyl(Commerical)…1986-newer
50HP 2 Cyl(Pleasure)…1971-1974
50HP 3 Cyl(Pleasure)…1994-1999
50HP 2 Cyl(Commerical)…1977-1979
50HP E-TEC…2004-newer
55HP 2 Cyl(Commerical)…1980-newer
55HP 3 Cyl…1968-1969
55HP E-TEC…2009-newer
60HP 3 Cyl…1970-1971,1986-2001
60HP (4 Stroke)…1998-newer
60HP E-TEC…2004-newer
65HP 3 Cyl(Pleasure)…1972-1973
65HP 3 Cyl(Commerical)…1984-2001
65HP 3 Cyl(Pontoon)…2014-newer
70HP 3 Cyl(Pleasure)…1974-newer
70HP 3 Cyl(Commerical)…1974-2001
70HP(4 Stroke)...1998-newer
75HP 3 Cyl(Pleasure)...1975-1984
75HP E-TEC...2004-newer
V4 Outboard
85HP...1969-1980,1991-1995
88HP...1981-1996
90HP...1981-newer
90HP E-TEC...2004-newer
90HP(Pontoon)...2014-newer
100HP...1979-1980,1988-1993
110HP...1986-1989
112HP...1994-1996
115HP...1973-newer
115HP E-TEC...2004-newer
120HP...1986-1994
125HP...1971-1972
130HP E-TEC...2004-2010
135HP...1973-1976
140HP...1977-1984,1986-1994
OMC Sterndrives
Model 400 2.3L-3.0L
Cobra 2.3L-3.0L
Sea Drive 1.6L-1.8L


  D GROUP

13 tooth spline


MEGARA Series
AL.M0705-14-9-RH3149RH
AL.M0705-14-10-RH31410RH
AL.M0705-14-11-RH31411RH
AL.M0705-14-13-RH31413RH
AL.M0705- 13 3/4-15-RH3 13 3/415RH
AL.M0705- 13 1/4-17-RH3 13 1/417RH
AL.M0705-13-19-RH31319RH
AL.M0705-12 3/4-21-RH312 3/421RH
MEGARA Series
AL.M0706-13.8-10-RH413.810RH
AL.M0706-13.8-11-RH413.811RH
AL.M0706-13.8-13-RH413.813RH
AL.M0706-13.4-15-RH413.415RH
AL.M0706-13-17-RH41317RH
AL.M0706-12.5-19-RH412.519RH
