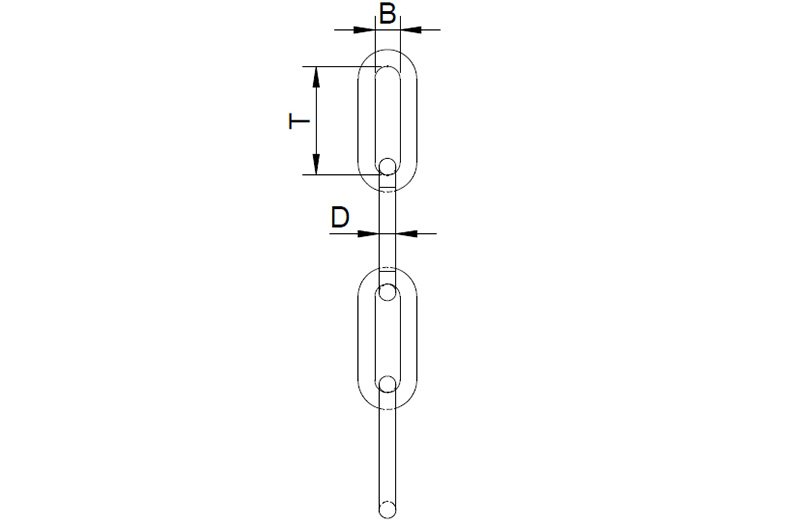

| Art No. | Link Specification | Net Weight | ||||
| Dia | Inside Length | Outside Width | kg/200ft | |||
| in | mm | mm | mm | B.F. | H.D.G | |
| S.CH1601 | 1/8" | 3.20 | 23.00 | 12.00 | 10.40 | 10.70 |
| S.CH1602 | 5/32" | 4.00 | 27.00 | 15.00 | 16.60 | 17.50 |
| S.CH1603 | 3/16" | 4.70 | 31.00 | 17.00 | 22.40 | 23.30 |
| S.CH1604 | 7/32" | 5.50 | 32.00 | 19.00 | 32.00 | 33.00 |
| S.CH1605 | 1/4" | 6.35 | 33.00 | 21.00 | 43.50 | 44.80 |
| S.CH1606 | 5/16" | 7.94 | 48.00 | 31.00 | 68.00 | 70.00 |
| S.CH1607 | 3/8" | 9.50 | 60.00 | 37.00 | 96.00 | 99.00 |
| S.CH1608 | 7/16" | 11.11 | 71.00 | 41.00 | 126.00 | 129.00 |
| S.CH1609 | 1/2" | 12.70 | 85.00 | 48.50 | 167.00 | 172.00 |
| S.CH1610 | 5/8" | 15.80 | 114.00 | 61.50 | 256.00 | 264.00 |
| S.CH1611 | 3/4" | 19.00 | 125.00 | 75.00 | 381.00 | 392.00 |
| S.CH1612 | 7/8" | 22.20 | 140.00 | 88.00 | 527.00 | 543.00 |
| S.CH1613 | 1" | 25.40 | 155.00 | 100.00 | 696.00 | 716.00 |
