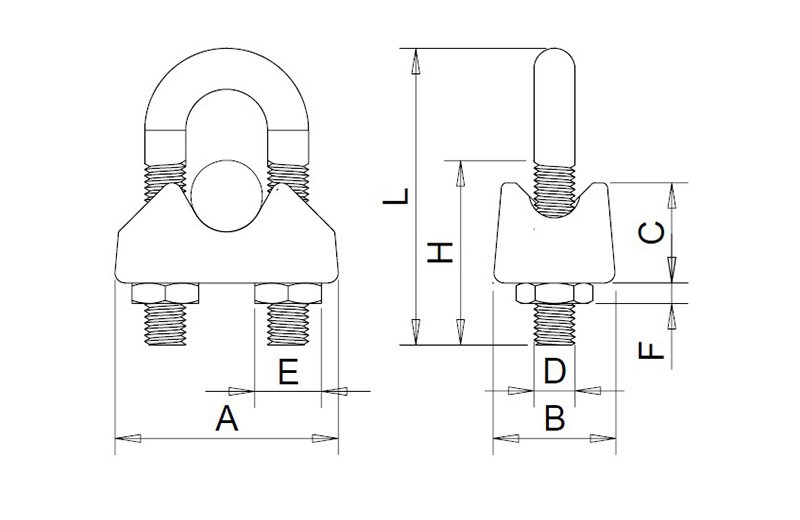

| Art No. | SIZE | A | B | C | E | F | H | L | D | Weight |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/pc | |
| S.CL08-03 | 3-4 | 22 | 14 | 8 | 7 | 3.5 | 12 | 22 | 4 | 0.01 |
| S.CL08-05 | 5 | 24 | 16 | 9 | 8 | 4 | 15 | 24 | 5 | 0.02 |
| S.CL08-06 | 6 | 30 | 18 | 11 | 10 | 5 | 18 | 33 | 6 | 0.03 |
| S.CL08-08 | 8 | 33 | 20 | 12 | 10 | 5 | 20 | 35 | 6 | 0.05 |
| S.CL08-10 | 10 | 37 | 22 | 14 | 13 | 6.35 | 22 | 43 | 8 | 0.07 |
| S.CL08-12 | 12 | 45 | 25 | 16 | 17 | 8 | 30 | 54 | 10 | 0.12 |
| S.CL08-14 | 14 | 46 | 27 | 18 | 17 | 8 | 30 | 54 | 10 | 0.15 |
| S.CL08-16 | 16 | 53 | 30 | 20 | 17 | 8 | 30 | 65 | 10 | 0.20 |
| S.CL08-18 | 18 | 55 | 31.5 | 21 | 19 | 10 | 35 | 80 | 12 | 0.24 |
| S.CL08-20 | 19-20 | 58 | 33 | 22 | 19 | 10 | 35 | 80 | 12 | 0.27 |
| S.CL08-22 | 22 | 64 | 34 | 23 | 19 | 10 | 43 | 85 | 12 | 0.31 |
| S.CL08-25 | 25 | 69 | 39 | 24 | 19 | 10 | 43 | 85 | 12 | 0.36 |
| S.CL08-28 | 28 | 80 | 42 | 30 | 22 | 13 | 52 | 105 | 14 | 0.60 |
| S.CL08-32 | 32 | 92 | 46 | 37 | 24 | 13 | 52 | 110 | 16 | 0.90 |
