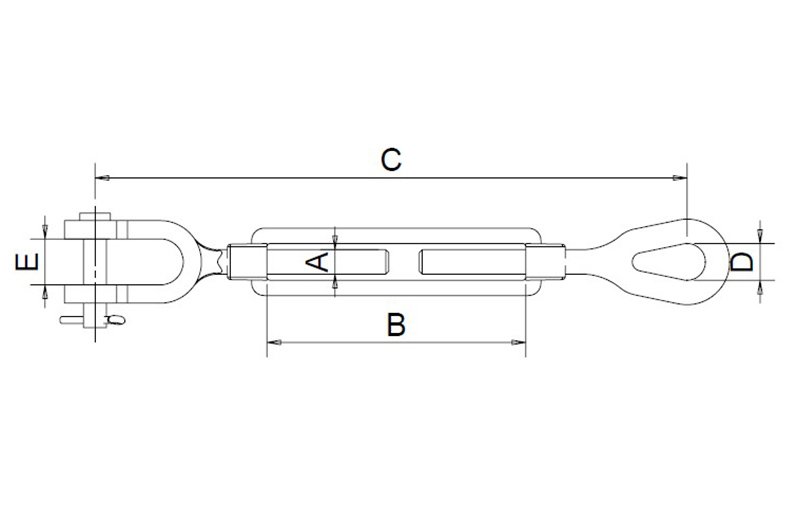

| Art No. | SIZE | A | B | C | D | E | WLL | Weight |
| inch | inch | Body Length | Closed Length | Eye Width | Jaw Width | lbs | lbs/pc | |
| S.TB15-1/4X4 | 1/4"x4'' | 1/4" | 4.00" | 7.35" | 0.34" | 0.45" | 500 | 0.30 |
| S.TB15-5/16X4.5 | 5/16"x4.5" | 5/16" | 4.50" | 8.71" | 0.44" | 0.50" | 800 | 0.50 |
| S.TB15-3/8X6 | 3/8"x6" | 3/8" | 6.00" | 10.81" | 0.53" | 0.54" | 1200 | 0.80 |
| S.TB15-1/2X6 | 1/2"x6" | 1/2" | 6.00" | 12.29" | 0.72" | 0.55" | 2200 | 1.51 |
| S.TB15-1/2X9 | 1/2"x9" | 1/2" | 9.00" | 15.29" | 0.72" | 0.55" | 2200 | 1.71 |
| S.TB15-1/2X12 | 1/2"x12" | 1/2" | 12.00" | 18.29" | 0.72" | 0.55" | 2200 | 2.08 |
| S.TB15-5/8X6 | 5/8"x6" | 5/8" | 6.00" | 13.74" | 0.88" | 0.82" | 3500 | 2.35 |
| S.TB15-5/8X9 | 5/8"x9" | 5/8" | 9.00" | 16.74" | 0.88" | 0.82" | 3500 | 3.17 |
| S.TB15-5/8X12 | 5/8"x12" | 5/8" | 12.00" | 19.74" | 0.88" | 0.82" | 3500 | 3.61 |
| S.TB15-3/4X6 | 3/4"x6" | 3/4" | 6.00" | 15.19" | 1.00" | 1.03" | 5200 | 4.00 |
| S.TB15-3/4X9 | 3/4"x9" | 3/4" | 9.00" | 18.19" | 1.00" | 1.03" | 5200 | 4.75 |
| S.TB15-3/4X12 | 3/4"x12" | 3/4" | 12.00" | 21.19" | 1.00" | 1.03" | 5200 | 5.93 |
| S.TB15-7/8X12 | 7/8"x12" | 7/8" | 12.00" | 22.34" | 1.25" | 1.23" | 7200 | 8.36 |
| S.TB15-7/8X18 | 7/8"x18" | 7/8" | 18.00" | 28.34" | 1.25" | 1.23" | 7200 | 9.75 |
| S.TB15-1X6 | 1"x6" | 1" | 6.00" | 18.34" | 1.44" | 1.31" | 10000 | 8.92 |
| S.TB15-1X12 | 1"x12" | 1" | 12.00" | 24.34" | 1.44" | 1.31" | 10000 | 11.20 |
| S.TB15-5/4X12 | 1-1/4"x12" | 1-1/4" | 12.00" | 26.82" | 1.81" | 1.86" | 15200 | 19.42 |
| S.TB15-3/2X12 | 1-1/2"x12" | 1-1/2" | 12.00" | 28.50" | 2.12" | 2.25" | 21400 | 28.99 |
| S.TB15-7/4X18 | 1-3/4"x18" | 1-3/4" | 18.00" | 37.38" | 2.38" | 2.60" | 28000 | 53.75 |
