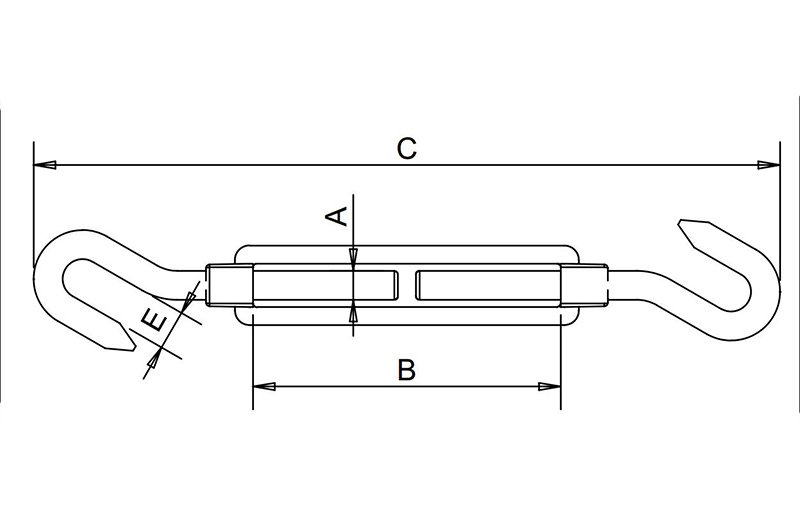

| Art No. | SIZE | A | B | C | E | WLL | Weight |
| inch | inch | Body Length | Closed Length | Hook Width | lbs | lbs/pc | |
| S.TB17-1/4X4 | 1/4"x4'' | 1/4" | 4.00" | 7.12" | 0.45" | 400 | 0.30 |
| S.TB17-5/16X4.5 | 5/16"x4.5" | 5/16" | 4.50" | 8.31" | 0.50" | 700 | 0.47 |
| S.TB17-3/8X6 | 3/8"x6" | 3/8" | 6.00" | 10.50" | 0.56" | 1000 | 0.78 |
| S.TB17-1/2X6 | 1/2"x6" | 1/2" | 6.00" | 11.82" | 0.66" | 1500 | 1.60 |
| S.TB17-1/2X9 | 1/2"x9" | 1/2" | 9.00" | 14.82" | 0.66" | 1500 | 1.83 |
| S.TB17-1/2X12 | 1/2"x12" | 1/2" | 12.00" | 17.82" | 0.66" | 1500 | 2.28 |
| S.TB17-5/8X6 | 5/8"x6" | 5/8" | 6.00" | 13.25" | 0.90" | 2250 | 2.75 |
| S.TB17-5/8X9 | 5/8"x9" | 5/8" | 9.00" | 16.25" | 0.90" | 2250 | 3.38 |
| S.TB17-5/8X12 | 5/8"x12" | 5/8" | 12.00" | 19.25" | 0.90" | 2250 | 3.50 |
| S.TB17-3/4X6 | 3/4"x6" | 3/4" | 6.00" | 14.88" | 0.98" | 3000 | 3.89 |
| S.TB17-3/4X9 | 3/4"x9" | 3/4" | 9.00" | 17.88" | 0.98" | 3000 | 5.28 |
| S.TB17-3/4X12 | 3/4"x12" | 3/4" | 12.00" | 20.88" | 0.98" | 3000 | 5.43 |
| S.TB17-7/8X12 | 7/8"x12" | 7/8" | 12.00" | 22.25" | 1.13" | 4000 | 8.10 |
| S.TB17-7/8X18 | 7/8"x18" | 7/8" | 18.00" | 28.25" | 1.13" | 4000 | 9.95 |
| S.TB17-1X6 | 1"x6" | 1" | 6.00" | 17.63" | 1.25" | 5000 | 9.33 |
| S.TB17-1X12 | 1"x12" | 1" | 12.00" | 23.63" | 1.25" | 5000 | 11.93 |
| S.TB17-5/4X12 | 1-1/4"x12" | 1-1/4" | 12.00" | 25.94" | 1.50" | 6500 | 20.58 |
| S.TB17-3/2X12 | 1-1/2"x12" | 1-1/2" | 12.00" | 28.94" | 1.88" | 7500 | 27.50 |
