S.TH04 Thimble G411 Commercial U.S. Type

S.TH04 Thimble G411 Commercial U.S. Type

Stainless Steel AISI316 or AISI304

Technical parameters

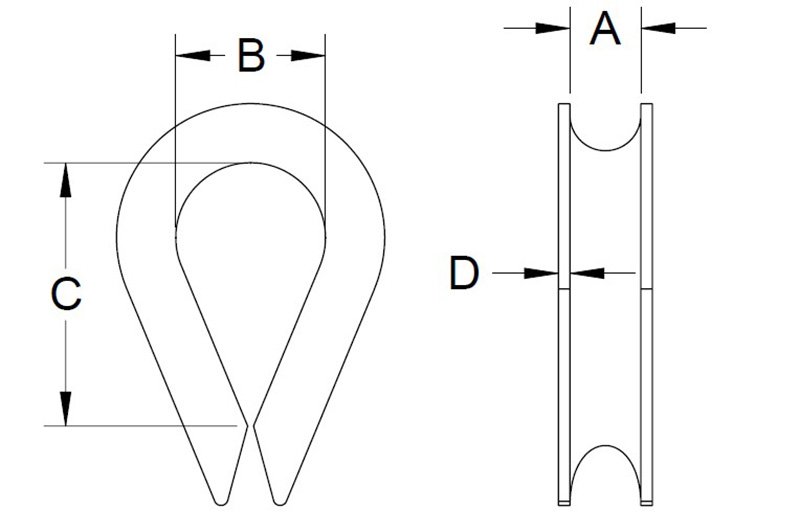

Art No.SIZEABCDWeight
inchinchinchinchinchkg/pc
S.TH04-1/81/8"0.16"0.69"1.31"0.05"0.007
  S.TH04-3/163/16"0.22"0.69"1.31"0.05"0.008
S.TH04-1/41/4"0.28"0.69"1.31"0.05"0.009
  S.TH04-5/165/16"0.34"0.81"1.50"0.05"0.012
S.TH04-3/83/8"0.41"0.94"1.63"0.06"0.015
S.TH04-1/21/2"0.53"1.13"1.88"0.08"0.070
S.TH04-5/85/8"0.66"1.38"2.25"0.13"0.200
S.TH04-3/43/4"0.78"1.63"2.50"0.14"0.250
S.TH04-7/87/8"0.94"1.88"3.50"0.16"0.470
        S.TH04-11"1.06"2.50"4.25"0.16"0.570
      S.TH04-9/8-5/41-1/8"-1-1/4"1.31"2.75"4.50"0.22"1.090
