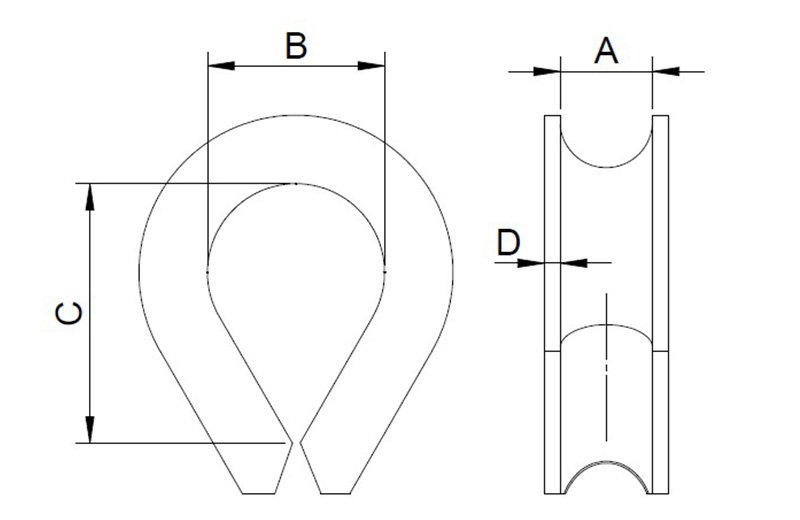

| Art No. | SIZE | A | B | C | D | Weight |
| inch | inch | inch | inch | inch | kg/pc | |
| S.TH05-3/16 | 3/16" | 0.21" | 0.75" | 1.37" | 0.06" | 0.026 |
| S.TH05-1/4 | 1/4" | 0.28" | 0.87" | 1.62" | 0.07" | 0.030 |
| S.TH05-5/16 | 5/16" | 0.34" | 1.06" | 1.87" | 0.08" | 0.052 |
| S.TH05-3/8 | 3/8" | 0.43" | 1.12" | 2.00" | 0.11" | 0.101 |
| S.TH05-7/16 | 7/16" | 0.47" | 1.25" | 2.38" | 0.12" | 0.150 |
| S.TH05-1/2 | 1/2" | 0.56” | 1.50" | 2.50" | 0.15" | 0.226 |
| S.TH05-9/16 | 9/16" | 0.59" | 1.50" | 2.50" | 0.15" | 0.230 |
| S.TH05-5/8 | 5/8" | 0.93" | 1.75" | 3.00" | 0.18" | 0.338 |
| S.TH05-3/4 | 3/4" | 0.81" | 2.00" | 3.75" | 0.22" | 0.800 |
| S.TH05-7/8 | 7/8" | 0.93" | 2.25" | 4.00" | 0.22" | 1.050 |
| S.TH05-1 | 1" | 1.12" | 2.50" | 4.37" | 0.25" | 1.340 |
| S.TH05-9/8-5/4 | 1-1/8"-1-1/4" | 1.30" | 2.88" | 5.13" | 0.25" | 1.770 |
