S.CH13 Proof Coil Chain NACM1996/2003

S.CH13 Proof Coil Chain NACM1996/2003

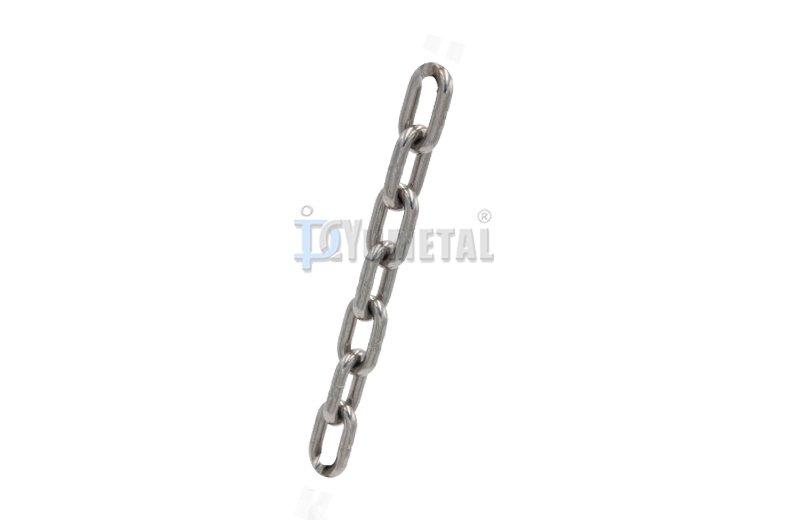

Stainless Steel Link Chain AISI304 & AISI316

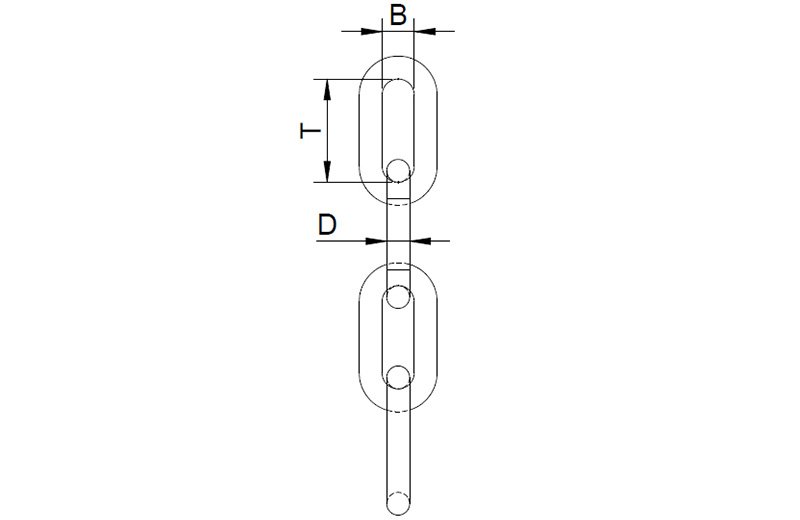

Technical parameters

Art No.Normal SizeMaterial DiameterInside Length (max)Inside Width(min)
mminchmminchmminchmminch
S.CH13014.0 1/8"4.00 0.16 23.90 0.94 6.40 0.25
S.CH13025.5 3/16"5.50 0.22 24.80 0.98 7.70 0.30
S.CH13037.0 1/4"7.00 0.28 31.50 1.24 9.80 0.38
S.CH13048.0 5/16"8.40 0.33 32.80 1.29 11.20 0.44
S.CH130510.0 3/8"10.00 0.39 35.00 1.38 14.00 0.55
S.CH130611.9 7/16"11.90 0.49 41.50 1.64 16.60 0.65
S.CH130713.0 1/2"13.00 0.51 45.60 1.79 18.20 0.72
S.CH130816.0 5/8"16.00 0.63 56.00 2.20 20.00 0.79
S.CH130920.0 3/4"20.00 0.79 70.00 2.76 25.00 0.98
S.CH131022.0 7/8"22.00 0.87 77.00 3.03 27.50 1.08
S.CH131125.0 1"26.00 1.02 90.90 3.58 31.70 1.25
