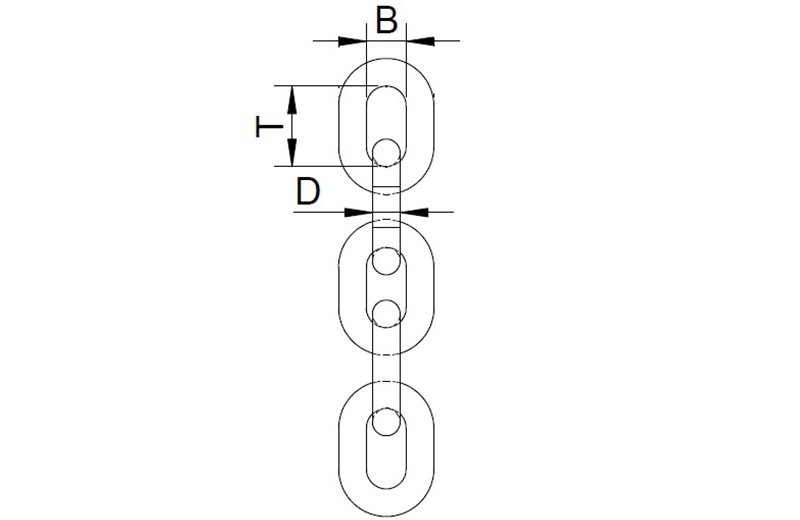

| Art No. | Link Specification | Net Weight | ||||
| Dia | Inside Length | Outside Width | kg/200ft | |||
| inch | mm | mm | mm | B.F. | H.D.G | |
| S.CH1401 | 1/8" | 3.20 | 16.00 | 12.00 | 11.40 | 11.74 |
| S.CH1402 | 5/32" | 4.00 | 18.50 | 14.50 | 18.60 | 19.00 |
| S.CH1403 | 3/16" | 4.70 | 19.00 | 17.00 | 26.20 | 27.00 |
| S.CH1404 | 7/32" | 5.50 | 20.00 | 19.00 | 36.80 | 38.00 |
| S.CH1405 | 1/4" | 6.35 | 22.00 | 21.00 | 50.00 | 51.50 |
| S.CH1406 | 5/16" | 7.94 | 26.50 | 27.20 | 80.00 | 82.40 |
| S.CH1407 | 3/8" | 9.50 | 30.00 | 32.00 | 122.00 | 125.70 |
| S.CH1408 | 7/16" | 11.11 | 34.00 | 36.00 | 164.00 | 169.00 |
| S.CH1409 | 1/2" | 12.70 | 39.00 | 43.00 | 210.00 | 216.00 |
| S.CH1410 | 5/8" | 15.80 | 45.00 | 53.00 | 334.00 | 344.00 |
| S.CH1411 | 3/4" | 19.00 | 55.00 | 63.00 | 485.00 | 499.00 |
| S.CH1412 | 7/8" | 22.20 | 64.00 | 74.00 | 656.00 | 675.00 |
| S.CH1413 | 1" | 25.40 | 73.00 | 84.00 | 870.00 | 896.00 |
