S.SH07 US Type Bolt Safety Pin Bow Shackle

Stainless Steel AISI316 or AISI304

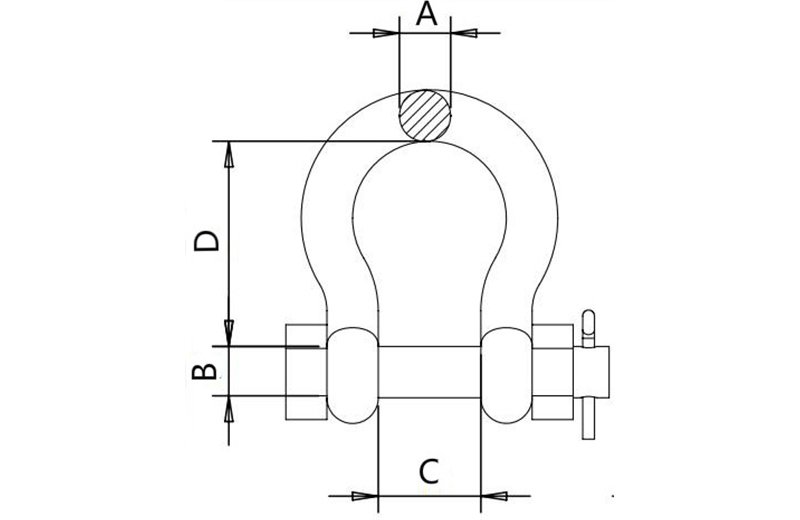

Technical parameters

Art No.SIZEABCDWLLWeight
inchinchinchinchinchtonskg/pc
S.SH07-3/163/16"3/16"1/4"0.38"0.88"0.33 0.027
S.SH07-1/41/4"1/4"5/16"0.47"1.13"0.50 0.048
S.SH07-5/165/16"5/16"3/8"0.53"1.22"0.75 0.086
S.SH07-3/83/8"3/8"7/16"0.66"1.44"1.00 0.152
S.SH07-7/167/16"7/16"1/2"0.75"1.69"1.50 0.248
S.SH07-1/21/2"1/2"5/8"0.81"1.88"2.00 0.355
S.SH07-5/85/8"5/8"3/4"1.05"2.38"3.00 0.699
S.SH07-3/43/4"3/4"7/8"1.25"2.81"4.00 1.145
S.SH07-7/87/8"7/8"1"1.44"3.31"5.00 1.659
S.SH07-11"1"1-1/8"1.69"3.75"6.00 2.500
S.SH07-11/81-1/8"1-1/8"1-1/4"1.81"4.25"7.00 3.600
S.SH07-11/41-1/4"1-1/4"1-3/8"2.03"4.69"8.00 5.100
S.SH07-13/81-3/8"1-3/8"1-1/2"2.25"5.25"9.00 6.900
S.SH07-11/21-1/2"1-1/2"1-3/4"2.38"5.75"10.00 9.000
