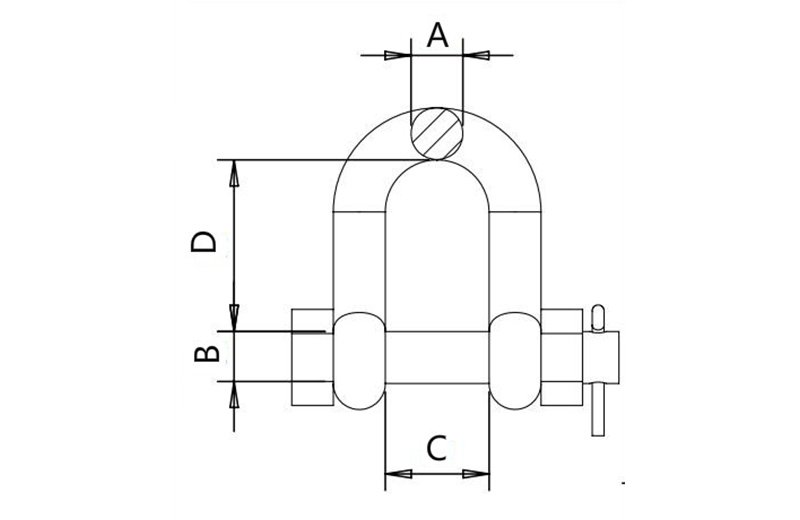

| Art No. | SIZE | A | B | C | D | WLL | Weight |
| inch | inch | inch | inch | inch | tons | kg/pc | |
| S.SH08-3/16 | 3/16" | 3/16" | 1/4" | 0.38" | 0.88" | 0.33 | 0.026 |
| S.SH08-1/4 | 1/4" | 1/4" | 5/16" | 0.47" | 1.13" | 0.50 | 0.045 |
| S.SH08-5/16 | 5/16" | 5/16" | 3/8" | 0.53" | 1.22" | 0.75 | 0.084 |
| S.SH08-3/8 | 3/8" | 3/8" | 7/16" | 0.66" | 1.44" | 1.00 | 0.141 |
| S.SH08-7/16 | 7/16" | 7/16" | 1/2" | 0.75" | 1.69" | 1.50 | 0.231 |
| S.SH08-1/2 | 1/2" | 1/2" | 5/8" | 0.81" | 1.88" | 2.00 | 0.326 |
| S.SH08-5/8 | 5/8" | 5/8" | 3/4" | 1.05" | 2.38" | 3.00 | 0.630 |
| S.SH08-3/4 | 3/4" | 3/4" | 7/8" | 1.25" | 2.81" | 4.00 | 1.050 |
| S.SH08-7/8 | 7/8" | 7/8" | 1" | 1.44" | 3.31" | 5.00 | 1.610 |
| S.SH08-1 | 1" | 1" | 1-1/8" | 1.69" | 3.75" | 6.00 | 2.058 |
| S.SH08-11/8 | 1-1/8" | 1-1/8" | 1-1/4" | 1.81" | 4.25" | 7.00 | 3.100 |
| S.SH08-11/4 | 1-1/4" | 1-1/4" | 1-3/8" | 2.03" | 4.69" | 8.00 | 4.700 |
| S.SH08-13/8 | 1-3/8" | 1-3/8" | 1-1/2" | 2.25" | 5.25" | 9.00 | 6.000 |
| S.SH08-11/2 | 1-1/2" | 1-1/2" | 1-3/4" | 2.38" | 5.75" | 10.00 | 8.000 |
