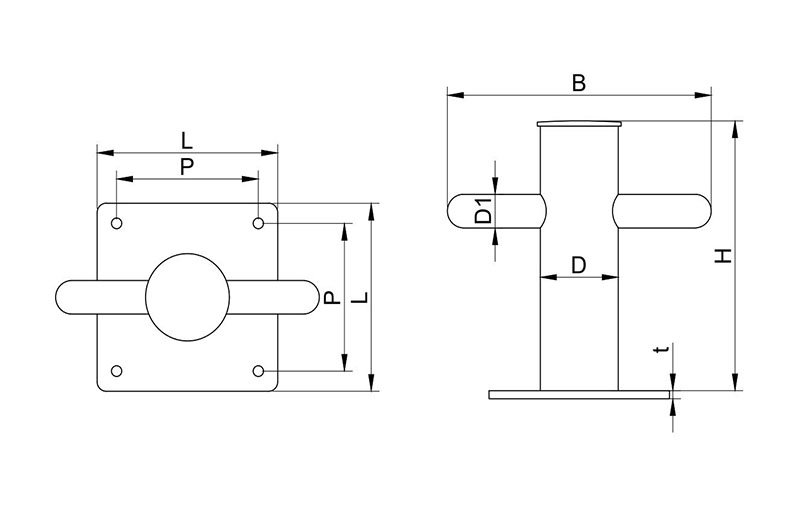

| Art No. | L mm | B mm | P mm | H mm | t mm | D mm | D1 mm |
| S.M0216-80 | 80 | 125 | 55 | 125 | 6 | 42.7 | 16 |
| S.M0216-100 | 100 | 150 | 70 | 150 | 6 | 48.6 | 19 |
| S.M0216-140 | 140 | 200 | 110 | 200 | 9 | 60.5 | 25 |
| S.M0216-190 | 190 | 250 | 150 | 250 | 10 | 76.3 | 28 |
| S.M0216-200 | 200 | 300 | 160 | 300 | 12 | 89.1 | 32 |

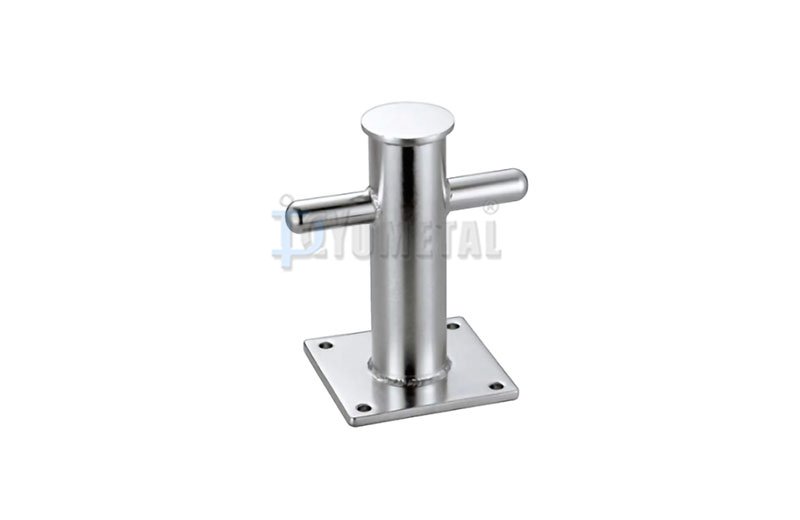

Stainless Steel AISI304 & AISI316
| Art No. | L mm | B mm | P mm | H mm | t mm | D mm | D1 mm |
| S.M0216-80 | 80 | 125 | 55 | 125 | 6 | 42.7 | 16 |
| S.M0216-100 | 100 | 150 | 70 | 150 | 6 | 48.6 | 19 |
| S.M0216-140 | 140 | 200 | 110 | 200 | 9 | 60.5 | 25 |
| S.M0216-190 | 190 | 250 | 150 | 250 | 10 | 76.3 | 28 |
| S.M0216-200 | 200 | 300 | 160 | 300 | 12 | 89.1 | 32 |
