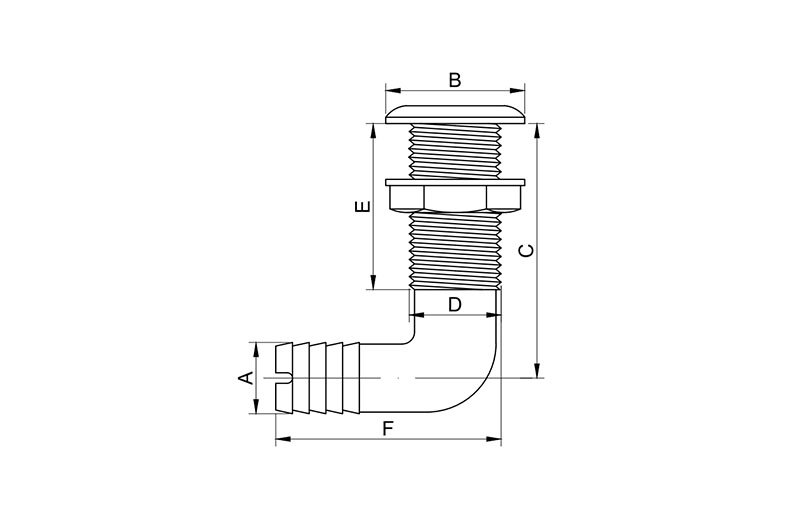

| Art No. | A | B | C | D | E | F |
| S.M1440-5/8 | 5/8" | 1.89" | 2.89" | 1.31" | 2" | 2.53" |
| S.M1440-3/4 | 3/4" | 1.89" | 2.89" | 1.31" | 2" | 2.53" |
| S.M1440-1 | 1" | 1.89" | 3.00" | 1.31" | 2" | 2.53" |
| S.M1440-1-1/8 | 1-1/8" | 1.89" | 2.81" | 1.31" | 1.77" | 2.53" |
| S.M1440-1-1/8A | 1-1/8" | 1.89" | 3.00" | 1.31" | 2" | 3.59" |
| S.M1440-1-1/4 | 1-1/4" | 2.36" | 3.00" | 1.59" | 2" | 3.73" |
| S.M1440-1-1/2 | 1-1/2" | 2.36" | 3.47" | 1.59" | 2" | 3.74" |
| S.M1440-2 | 2" | 3.25" | 3.54" | 2.22" | 2.95" | 4.45" |
