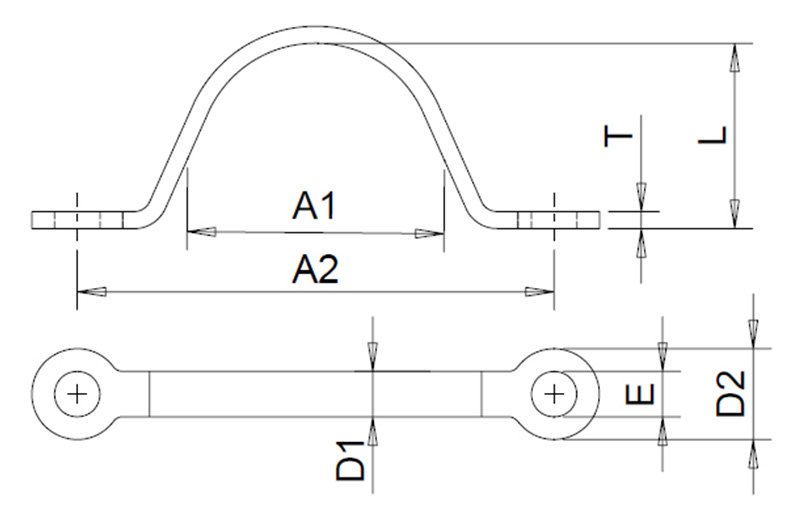

| Art No. | T | E | D2 | A2 | A1 | L | D1 |
| mm | mm | mm | mm | mm | mm | mm | |
| S.WS1602-1.5 | 1.5 | 4.2 | 9 | 28 | 11 | 12 | 5 |
| S.WS1602-02S | 2 | 5.0 | 11 | 34 | 15 | 14 | 6 |
| S.WS1602-02M | 2 | 5.3 | 12 | 44 | 20 | 19 | 7 |
| S.WS1602-02L | 2 | 5.3 | 12 | 63 | 28 | 28 | 7 |
| S.WS1602-03 | 3 | 6.4 | 14 | 67 | 32 | 33 | 8 |

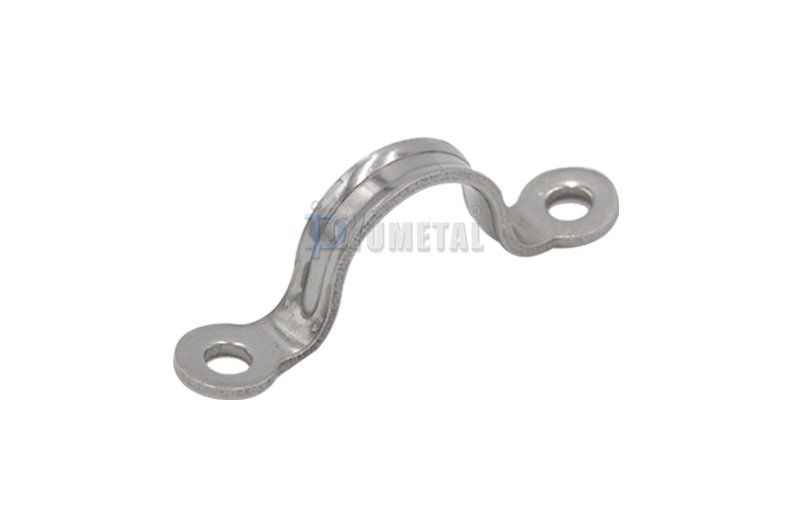

Stainless Steel AISI316 or AISI304
| Art No. | T | E | D2 | A2 | A1 | L | D1 |
| mm | mm | mm | mm | mm | mm | mm | |
| S.WS1602-1.5 | 1.5 | 4.2 | 9 | 28 | 11 | 12 | 5 |
| S.WS1602-02S | 2 | 5.0 | 11 | 34 | 15 | 14 | 6 |
| S.WS1602-02M | 2 | 5.3 | 12 | 44 | 20 | 19 | 7 |
| S.WS1602-02L | 2 | 5.3 | 12 | 63 | 28 | 28 | 7 |
| S.WS1602-03 | 3 | 6.4 | 14 | 67 | 32 | 33 | 8 |
