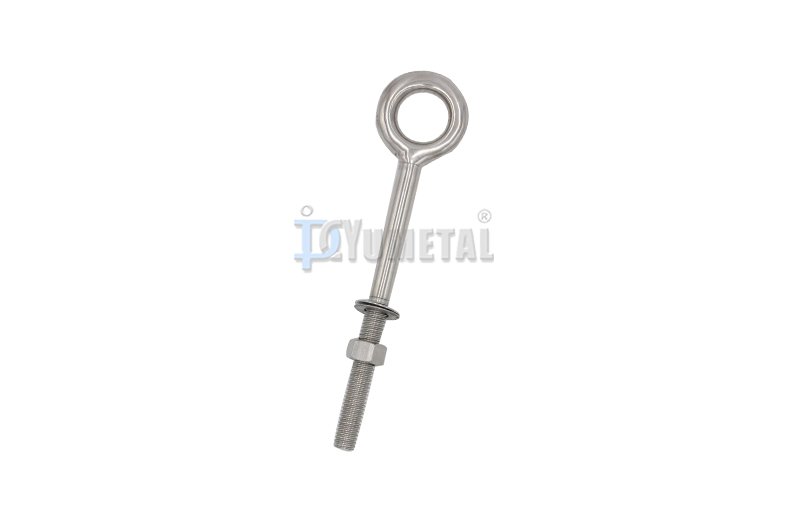

S.EB06 U.S. Type Welded Eye Bolt

S.EB06 U.S. Type Welded Eye Bolt

Nut Quantity and Washer Quantity can assemble as per client request.Stainless Steel AISI316 or AISI304, Welded.with 1 Nut with 2 Washers

Technical parameters

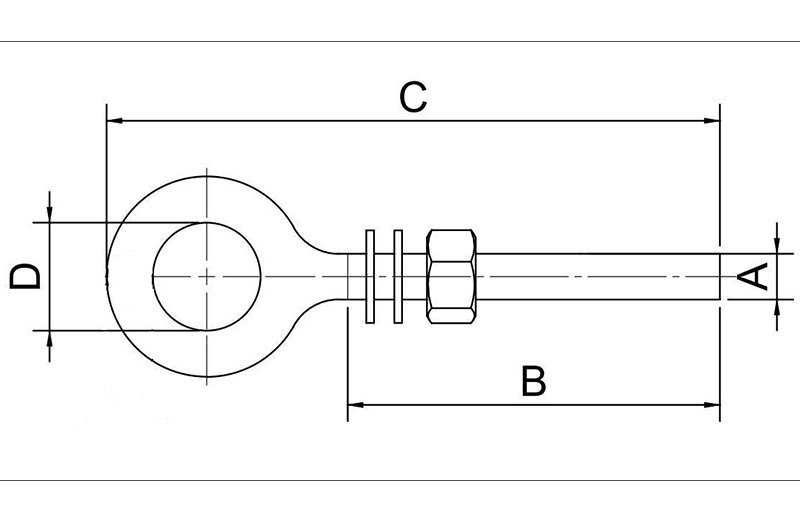

Art No.SIZEABCDWLLWeight
inchinchinchinchinchlbskg/pc
S.EB06-1/4X21/4"0.25"1.50"2.00"0.50"400 0.027
S.EB06-1/4X41/4"0.25"2.25"4.00"0.50"400 0.038
S.EB06-5/16X2.255/16"0.31"1.50"2.25"0.62"720 0.060
S.EB06-5/16X4.55/16"0.31"2.50"4.50"0.62"720 0.114
S.EB06-3/8X2.53/8"0.38"1.25"2.50"0.75"930 0.106
S.EB06-3/8X4.53/8"0.38"2.25"4.50"0.75"930 0.135
S.EB06-3/8X63/8"0.38"2.50"6.00"0.75"930 0.160
S.EB06-1/2X3.251/2"0.50"1.50"3.25"1.00"1560 0.230
S.EB06-1/2X61/2"0.50"3.00"6.00"1.00"1560 0.300
S.EB06-1/2X81/2"0.50"3.00"8.00"1.00"1560 0.370
S.EB06-1/2X101/2"0.50"3.00"10.00"1.00"1560 0.400
S.EB06-1/2X121/2"0.50"3.00"12.00"1.00"1560 0.520
S.EB06-5/8X45/8"0.63"2.00"4.00"1.25"3120 0.470
S.EB06-5/8X65/8"0.63"3.00"6.00"1.25"3120 0.540
S.EB06-5/8X85/8"0.63"3.00"8.00"1.25"3120 0.610
S.EB06-3/4X4.53/4"0.75"2.00"4.50"1.50"4320 0.770
S.EB06-3/4X63/4"0.75"3.00"6.00"1.50"4320 0.840
S.EB06-3/4X83/4"0.75"3.00"8.00"1.50"4320 0.940
S.EB06-7/8X57/8"0.88"2.50"5.00"1.75"6360 1.230
S.EB06-7/8X87/8"0.88"4.00"8.00"1.75"6360 1.380
S.EB06-7/8X127/8"0.88"4.00"12.00"1.75"6360 1.800
S.EB06-1X61"1.00"3.00"6.00"2.00"8000 1.900
S.EB06-1X91"1.00"4.00"9.00"2.00"8000 2.100
S.EB06-1X121"1.00"4.00"12.00"2.00"8000 2.450
S.EB06-1X181"1.00"7.00"18.00"2.00"8000 2.950
S.EB06-5/4X81-1/4"1.25"4.00"8.00"2.50"12600 3.300
S.EB06-5/4X121-1/4"1.25"4.00"12.00"2.50"12600 4.000
S.EB06-5/4X201-1/4"1.25"6.00"20.00"2.50"12600 5.300
