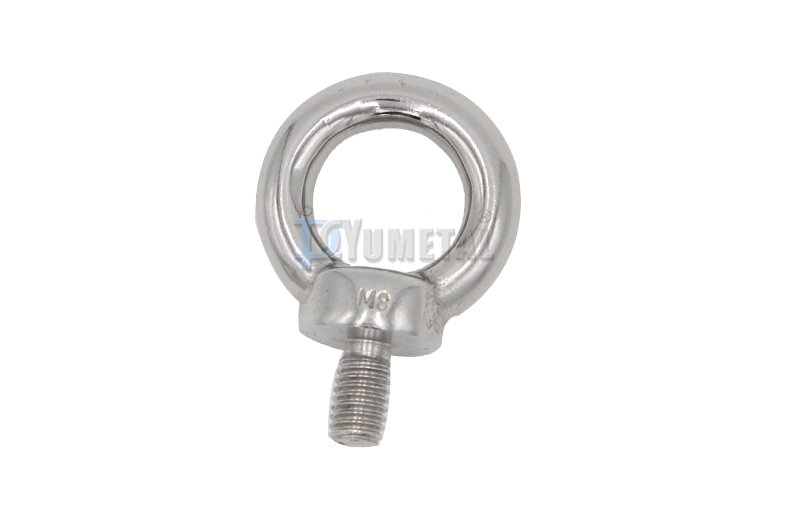

S.EB03 Eye Bolt JIS B 1168 Type

S.EB03 Eye Bolt JIS B 1168 Type

Stainless Steel AISI316 or AISI304, Precision Cast

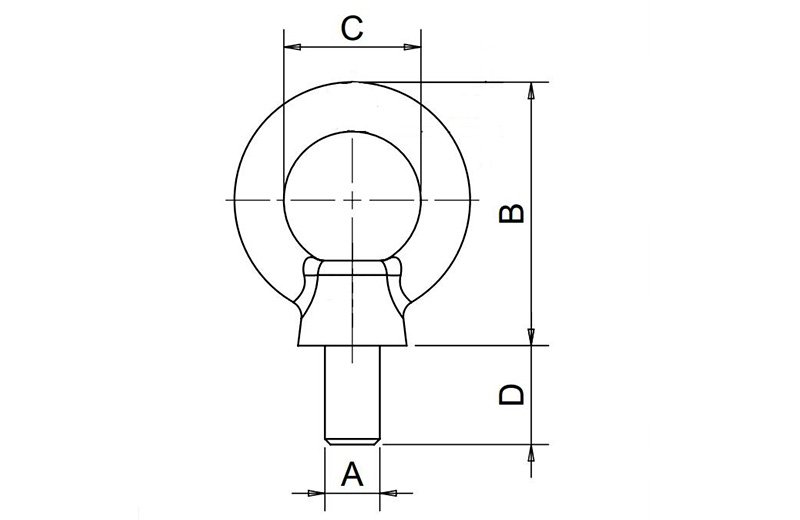

Technical parameters

Art No.SIZEABCDWLLWeight
mmmmmmmmmmtonskg/pc
S.EB03-06M663016100.05 0.015
S.EB03-08M883320150.08 0.030
S.EB03-10M10104825180.15 0.060
S.EB03-12M12126130220.22 0.117
S.EB03-14M14146832240.30 0.180
S.EB03-16M16167235270.45 0.210
S.EB03-18M18188237280.50 0.300
S.EB03-20M20208640300.63 0.385
S.EB03-22M222210644320.80 0.700
S.EB03-24M242411150380.95 0.800
