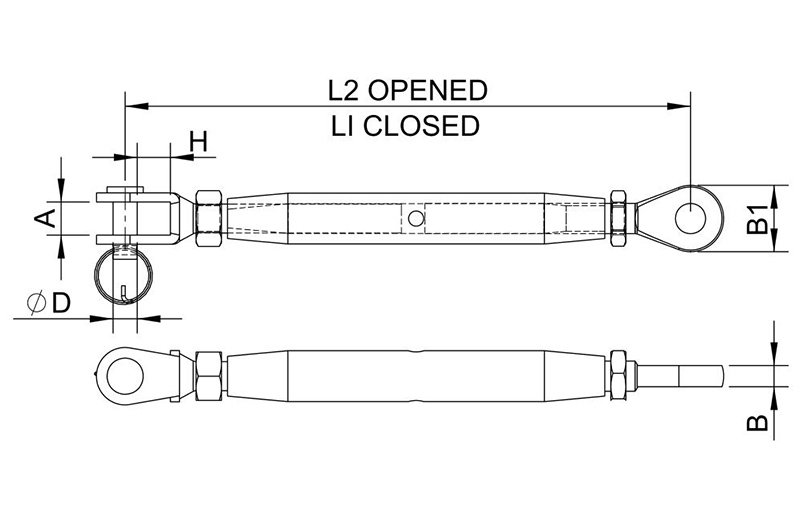

| Art No. | SIZE | A | D | H | B | B1 | L1 | L2 | BL | Weight |
| mm | mm | mm | mm | mm | mm | mm | mm | tons | kg/pc | |
| S.RS15-05 | M5 | 5.5 | 5 | 10 | 3 | 12 | 130 | 190 | 0.80 | 0.042 |
| S.RS15-06 | M6 | 7.5 | 6 | 10 | 4 | 14 | 145 | 215 | 1.25 | 0.063 |
| S.RS15-08 | M8 | 11 | 8 | 11 | 5 | 17 | 165 | 240 | 2.35 | 0.130 |
| S.RS15-10 | M10 | 12 | 9 | 14 | 6 | 22 | 190 | 280 | 3.50 | 0.220 |
| S.RS15-12 | M12 | 14 | 12 | 20 | 8 | 25 | 235 | 350 | 5.10 | 0.440 |
| S.RS15-14 | M14 | 15 | 12 | 22 | 9 | 28 | 260 | 380 | 5.90 | 0.600 |
| S.RS15-16 | M16 | 17 | 16 | 26 | 10 | 31 | 295 | 435 | 8.00 | 0.855 |
| S.RS15-20 | M20 | 20 | 19 | 30 | 15 | 40 | 345 | 495 | 13.00 | 1.690 |
| S.RS15-22 | M22 | 30 | 22 | 46.5 | 18 | 47 | 445 | 625 | 17.00 | 3.980 |
| S.RS15-24 | M24 | 30 | 25 | 49 | 20 | 53 | 508 | 740 | 20.00 | 5.800 |
| S.RS15-27 | M27 | 34 | 28 | 54 | 25 | 65 | 565 | 800 | 25.50 | 7.100 |
| S.RS15-30 | M30 | 40 | 32 | 62 | 30 | 70 | 620 | 875 | 31.00 | 9.910 |
| S.RS15-36 | M36 | 44 | 36 | 70 | 30 | 80 | 675 | 945 | 43.00 | 12.880 |
