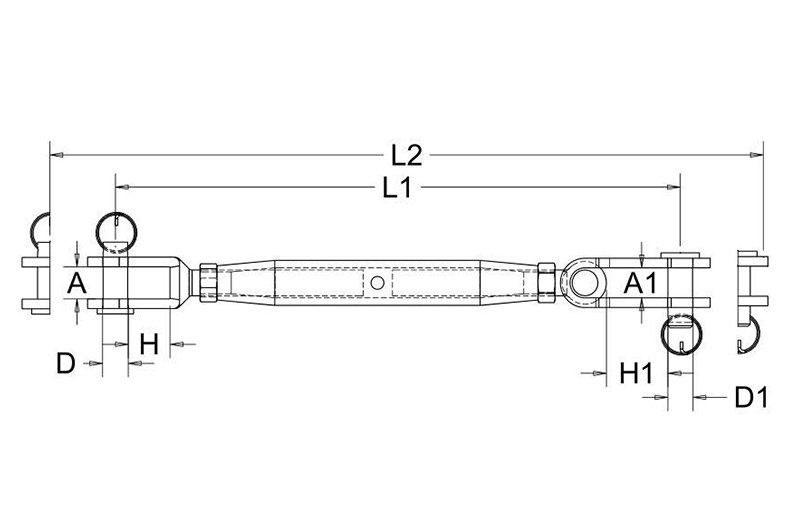

| Art No. | SIZE | A | D | H | A1 | D1 | H1 | L1 | L2 | BL | Weight |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | tons | kg/pc | |
| S.RS12-06 | M6 | 7.5 | 6 | 10 | 8 | 6 | 13 | 175 | 245 | 1.25 | 0.08 |
| S.RS12-08 | M8 | 11 | 8 | 11 | 10 | 8 | 16 | 205 | 280 | 2.35 | 0.16 |
| S.RS12-10 | M10 | 12 | 9 | 14 | 12 | 9 | 20 | 240 | 330 | 3.50 | 0.28 |
| S.RS12-12 | M12 | 14 | 12 | 20 | 18 | 12 | 25 | 300 | 405 | 5.10 | 0.53 |
| S.RS12-16 | M16 | 17 | 16 | 26 | 17 | 16 | 29 | 380 | 520 | 8.00 | 1.17 |
| S.RS12-20 | M20 | 20 | 19 | 30 | 20 | 19 | 30 | 435 | 575 | 13.00 | 2.03 |
| S.RS12-22 | M22 | 30 | 22 | 46.5 | 26 | 22 | 35 | 540 | 720 | 17.00 | 4.52 |
| S.RS12-24 | M24 | 30 | 25 | 49 | 29 | 25 | 40 | 620 | 845 | 20.00 | 6.62 |
| S.RS12-27 | M27 | 34 | 28 | 54 | 34 | 28 | 46 | 695 | 930 | 25.50 | 7.51 |
| S.RS12-30 | M30 | 40 | 32 | 62 | 40 | 32 | 54 | 765 | 1020 | 31.00 | 9.48 |
| S.RS12-36 | M36 | 44 | 36 | 70 | 44 | 36 | 62 | 845 | 1115 | 43.00 | 13.65 |
