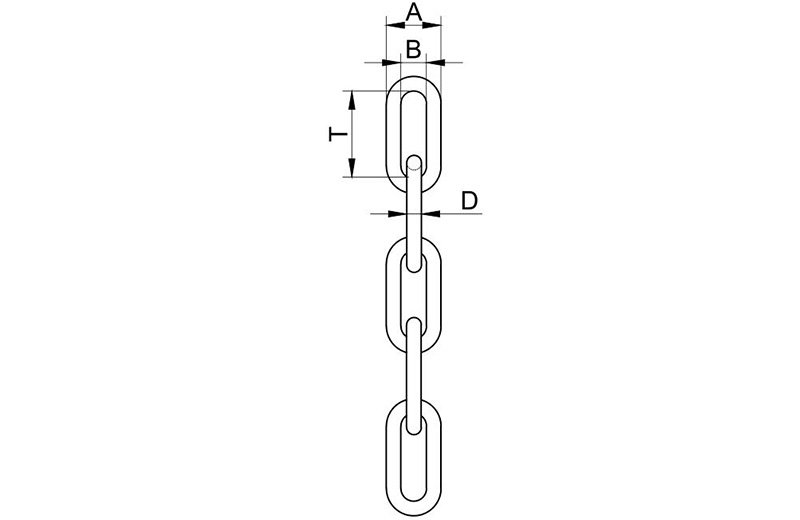

| Art No. | Size | Inside Length | Inside Width | Outside Width | Weight | |||
| mm | ±mm | mm | +mm | -mm | mm | mm | kg/m | |
| S.CH0101 | 2.0 | 0.20 | 12.00 | 0.20 | 0.20 | 3.50 | 7.50 | 0.07 |
| S.CH0102 | 3.0 | 0.20 | 16.00 | 0.20 | 0.20 | 4.20 | 11.00 | 0.16 |
| S.CH0103 | 4.0 | 0.20 | 16.00 | 0.30 | 0.20 | 5.00 | 13.70 | 0.32 |
| S.CH0104 | 5.0 | 0.20 | 18.50 | 0.40 | 0.20 | 6.00 | 17.00 | 0.50 |
| S.CH0105 | 6.0 | 0.20 | 18.50 | 0.40 | 0.20 | 7.20 | 20.20 | 0.80 |
| S.CH0106 | 7.0 | 0.30 | 22.00 | 0.40 | 0.20 | 8.40 | 23.80 | 1.10 |
| S.CH0107 | 8.0 | 0.30 | 24.00 | 0.40 | 0.20 | 9.60 | 27.20 | 1.40 |
| S.CH0108 | 9.0 | 0.40 | 27.00 | 0.50 | 0.30 | 10.80 | 30.60 | 1.80 |
| S.CH0109 | 10.0 | 0.40 | 28.00 | 0.50 | 0.30 | 12.00 | 34.00 | 2.20 |
| S.CH0110 | 11.0 | 0.40 | 31.00 | 0.50 | 0.30 | 13.20 | 37.40 | 2.70 |
| S.CH0111 | 12.0 | 0.30 | 36.00 | 0.60 | 0.30 | 14.40 | 40.80 | 3.10 |
| S.CH0112 | 13.0 | 0.50 | 36.00 | 0.60 | 0.30 | 15.60 | 44.20 | 3.80 |
| S.CH0113 | 14.0 | 0.60 | 41.00 | 0.70 | 0.40 | 16.80 | 47.60 | 4.40 |
| S.CH0114 | 16.0 | 0.60 | 45.00 | 0.80 | 0.40 | 19.20 | 54.40 | 5.70 |
| S.CH0115 | 18.0 | 0.90 | 50.00 | 0.80 | 0.40 | 21.60 | 61.20 | 7.30 |
| S.CH0116 | 19.0 | 0.40 | 53.00 | 0.90 | 0.40 | 22.80 | 64.60 | 7.97 |
| S.CH0117 | 20.0 | 1.00 | 56.00 | 1.00 | 0.50 | 24.00 | 68.00 | 9.00 |
| S.CH0118 | 22.0 | 1.20 | 62.00 | 1.10 | 0.50 | 26.40 | 75.00 | 11.00 |
| S.CH0119 | 23.0 | 1.20 | 64.00 | 1.10 | 0.50 | 27.60 | 78.20 | 12.00 |
| S.CH0120 | 26.0 | 1.30 | 73.00 | 1.20 | 0.60 | 31.20 | 88.40 | 15.00 |
