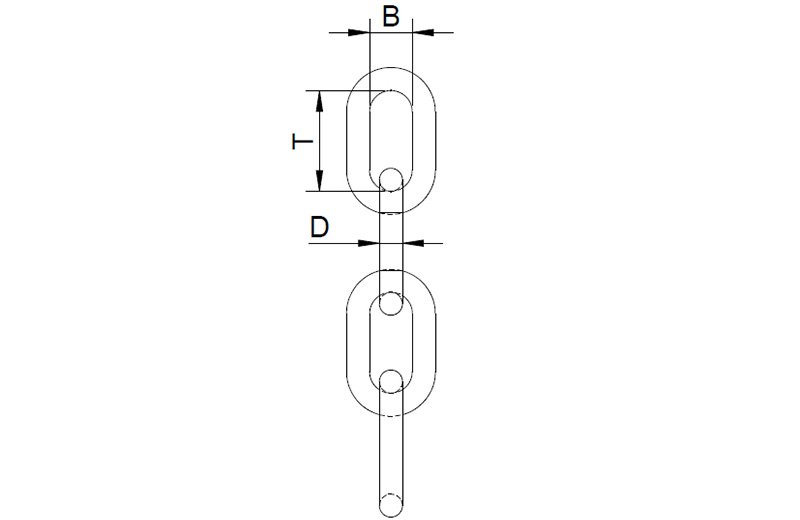

| Art No. | Normal Size | Inside Length (max) | Inside Width(min) | Weight | ||||
| in | mm | mm | inch | mm | inch | kg/100ft | lb/100ft | |
| S.CH1101 | 1/8" | 4.00 | 22.60 | 0.89 | 7.40 | 0.29 | 8.80 | 19.00 |
| S.CH1102 | 3/16" | 5.50 | 24.10 | 0.95 | 10.20 | 0.40 | 18.30 | 40.00 |
| S.CH1103 | 1/4" | 7.10 | 25.40 | 1.00 | 12.70 | 0.50 | 32.70 | 72.00 |
| S.CH1104 | 5/16" | 8.70 | 27.90 | 1.10 | 12.70 | 0.50 | 48.00 | 106.00 |
| S.CH1105 | 3/8" | 10.30 | 31.20 | 1.23 | 15.70 | 0.62 | 70.30 | 155.00 |
| S.CH1106 | 1/2" | 13.50 | 38.90 | 1.53 | 20.30 | 0.80 | 123.00 | 271.00 |
| S.CH1107 | 5/8" | 16.70 | 48.30 | 1.90 | 25.40 | 1.00 | 184.00 | 405.00 |
| S.CH1108 | 3/4" | 19.80 | 54.60 | 2.15 | 28.40 | 1.12 | 264.00 | 582.00 |
| S.CH1109 | 7/8" | 23.00 | 63.50 | 2.50 | 34.80 | 1.37 | 368.00 | 811.00 |
| S.CH1110 | 1" | 26.50 | 69.90 | 2.75 | 38.10 | 1.50 | 474.00 | 1045.00 |
