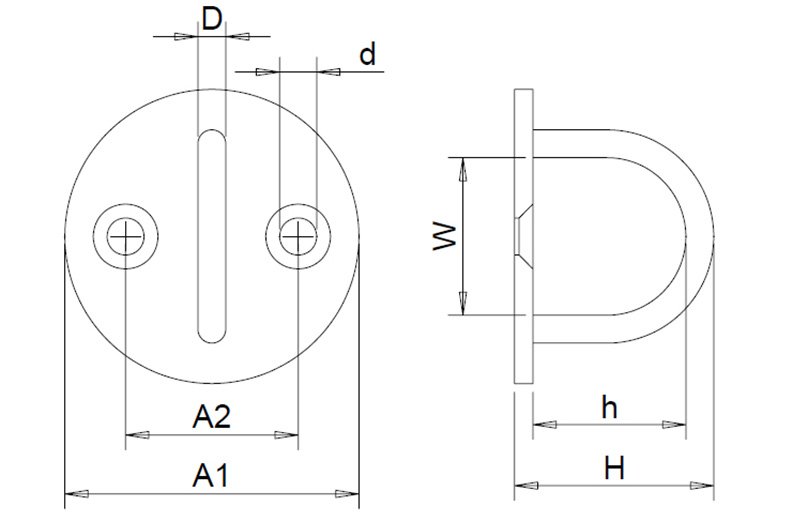

| ART. NO | D | A1 | A2 | H | h | W | d |
| mm | mm | mm | mm | mm | mm | mm | |
| S.PL05-05 | 5 | 33 | 20 | 20 | 12 | 13 | 4.2 |
| S.PL05-06 | 6 | 40 | 23 | 26 | 17 | 17 | 4.2 |
| S.PL05-08 | 8 | 50 | 30 | 32 | 21 | 20 | 5.2 |
Stainless Steel AISI316 & AISI304
| ART. NO | D | A1 | A2 | H | h | W | d |
| mm | mm | mm | mm | mm | mm | mm | |
| S.PL05-05 | 5 | 33 | 20 | 20 | 12 | 13 | 4.2 |
| S.PL05-06 | 6 | 40 | 23 | 26 | 17 | 17 | 4.2 |
| S.PL05-08 | 8 | 50 | 30 | 32 | 21 | 20 | 5.2 |
