S.M23 YAMAHA STAINLESS STEEL Propeller

S.M23 YAMAHA STAINLESS STEEL Propeller


Technical parameters

Engine HP&the year Drive TypeArt No.No. BladeDiam.PitchRotation
9.9-20HP
2-1/2" Gearcase
T8, T9.9...all years
F9.9(4 stroke)...2000-2007
F15(4 stroke)...1998-newer
F20(4 stroke)...2007-newer
9.9hp(2 stroke)...1984-2009
15hp(2 stroke)...1984-2009

F15C...2007-newer

F20(4 stroke)...2007-newer

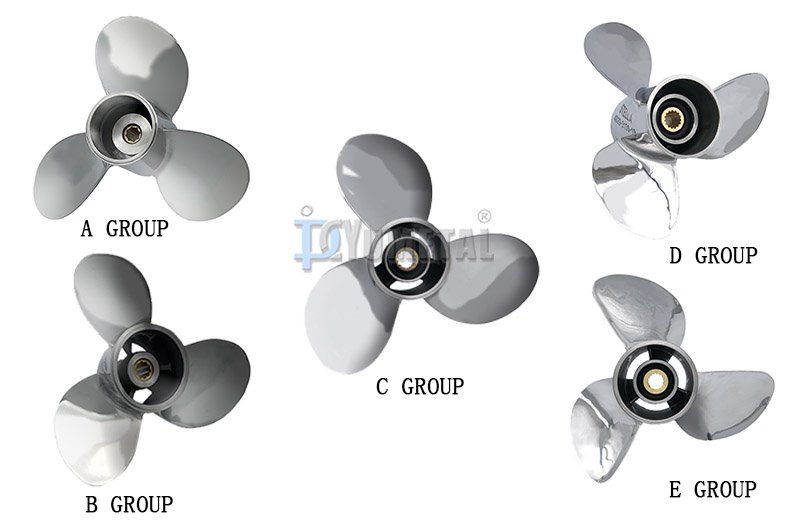

A GROUP
8 tooth spline
SEMA Series
S.M2301-9 1/4-9-RH39 1/49RH
S.M2301-9 1/4-10-RH39 1/410RH
S.M2301-9 1/4-11-RH39 1/411RH
S.M2301-9 1/4-12-RH39 1/412RH
20-30HP
3" Gearcase
20hp…1996-1997
F25(4 stroke)…1998-2006;
2010-newer
25hp…1980-newer
30hp…1983-2002
B GROUP
10 tooth spline
SEMA Series
S.M2302-10 1/8-11-RH310 1/811RH
S.M2302-10 1/8-12-RH310 1/812RH
S.M2302-10 1/8-13-RH310 1/813RH
S.M2302-10 1/8-14-RH310 1/814RH
S.M2302-10 1/8-15-RH310 1/815RH
25-60HP
3-1/2" Gearcase
T25hp...2010-newer
F30(4 stroke)...2001-2005 ; 2015-newer
40hp(C40)...1984-newer
48hp...1995-2000
50hp(Not T50)...1984-newer
F40(4 stroke)...1999-newer
F50(4 stroke)...1995-newer
55hp...1976-1995
60hp...1976-1991
F60(4 stroke)...1999-newer
C GROUP
13 tooth spline
Stella Series
S.M2303-12 1/4-9-RH312 1/49RH
S.M2303-11 1/2-11-RH311 1/211RH
S.M2303-11 5/8-12-RH311 5/812RH
S.M2303-11 1/2-13-RH311 1/213RH
S.M2303-11 3/8-14-RH311 3/814RH
S.M2303-11 1/4-15-RH311 1/415RH
MEGARA Series
S.M2303-10 7/8-11-RH310 7/811RH
S.M2303-10 3/4-12-RH310 3/412RH
S.M2303-10 3/8-13-RH310 3/813RH
S.M2303-10 3/8-14-RH310 3/814RH
S.M2303-10 1/4-15-RH310 1/415RH
50-130HP
4-1/4" Gearcase
T50(4 stroke)...1996-newer
60hp(C60/E60/P60)...1992-2005
T60(4 stroke)...2003-newer
70hp...1984-newer
F70(4 stroke)...2010-newer
75hp(C75/E75/P75)...1994-1999
F75(4 stroke)...2003-newer
80hp...1997
F80(4 stroke)...1999-2002
85hp...1991-1997
90hp(C90)...1984-newer
F90(4 stroke)...1999-newer
F100(4 stroke)...1999-2002
115hp(C115/P115)...1984-newer
F115(4 stroke)...2000-newer
130hp...1984-2003
D GROUP
15 tooth spline
Stella Series
S.M2304- 13 3/4-13-RH3 13 3/413RH
S.M2304- 13 1/2-14-RH3 13 1/214RH
S.M2304- 13 1/2-15-RH3 13 1/215RH
S.M2304- 13 1/4-17-RH3 13 1/417RH
S.M2304-13-19-RH31319RH
S.M2304-13-21-RH31321RH
150-250HP
4-3/4" Gearcase
150hp...1986-newer
F150(4 stroke)...2004-newer
175hp...1984-newer
F175(4 stroke)...2014-newer
200hp...1984-newer
200hp(VMAX)...2001
F200(4 stroke)...2002-newer
VF200V-MAX SHO...2010-newer
220hp(Special)...1987-1988
225hp(excel)...1980-newer
225hp...1986-newer
F225(4 stroke)...2002-newer
VF225 VMAX SHO...2010-newer
250hp...1990-newer
250hp(VMAX)...2001-newer
F250(4 stroke)...2002-newer
E GROUP
15 tooth spline
YANTA Series
S.M2305- 13 3/4-17-RH3 13 3/417RH
S.M2305- 13 3/4-17-LH3 13 3/417LH
S.M2305- 13 3/4-19-RH3 13 3/419RH
S.M2305- 13 3/4-19-LH3 13 3/419LH
S.M2305- 13 3/4-21-RH3 13 3/421RH
S.M2305-13 3/4-21-LH313 3/421LH
S.M2305- 13 3/8-23-RH3 13 3/823RH
S.M2305-13 3/8-23-LH313 3/823LH
