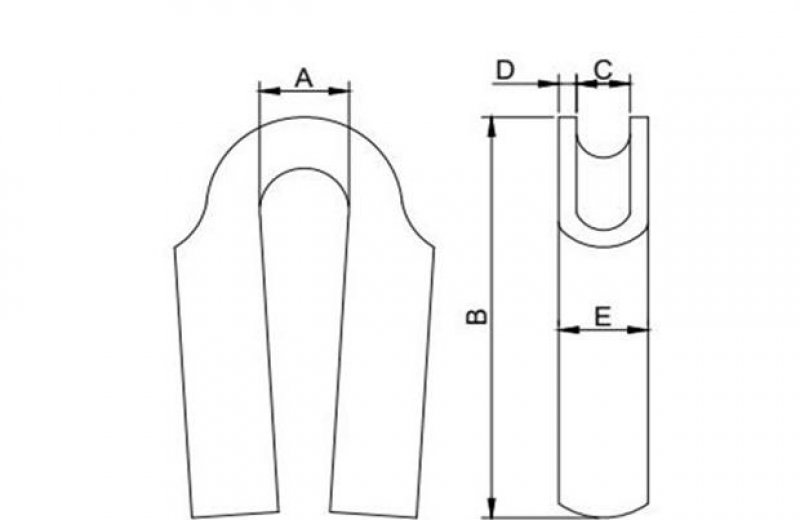

| Art No. | For rope dia | A | B | C | D | E |
| mm | mm | mm | mm | mm | mm | |
| S.TH06-04B | 4 | 11 | 23 | 4 | 1 | 6 |
| S.TH06-06B | 6 | 16 | 38 | 6 | 1 | 8 |
| S.TH06-08B | 8 | 17 | 46 | 8 | 1 | 10 |
| S.TH06-10B | 10 | 21 | 63 | 10 | 1.7 | 14 |
| S.TH06-12B | 12 | 23 | 72 | 12 | 2 | 16 |
| S.TH06-14B | 14 | 25 | 87 | 14 | 2 | 18 |
| S.TH06-16B | 16 | 25 | 87 | 16 | 2 | 20 |
| S.TH06-18B | 18 | 25 | 88 | 18 | 2 | 22 |
| S.TH06-20B | 20 | 31 | 95 | 21 | 3 | 27 |
| S.TH06-22B | 22 | 31 | 95 | 24 | 3 | 30 |
| S.TH06-25B | 25 | 50 | 123 | 26 | 3 | 32 |
| S.TH06-28B | 28 | 50 | 127 | 30 | 4 | 38 |
| S.TH06-32B | 32 | 70 | 180 | 34 | 4 | 42 |
| S.TH06-35B | 35 | 70 | 210 | 38 | 4.5 | 47 |
