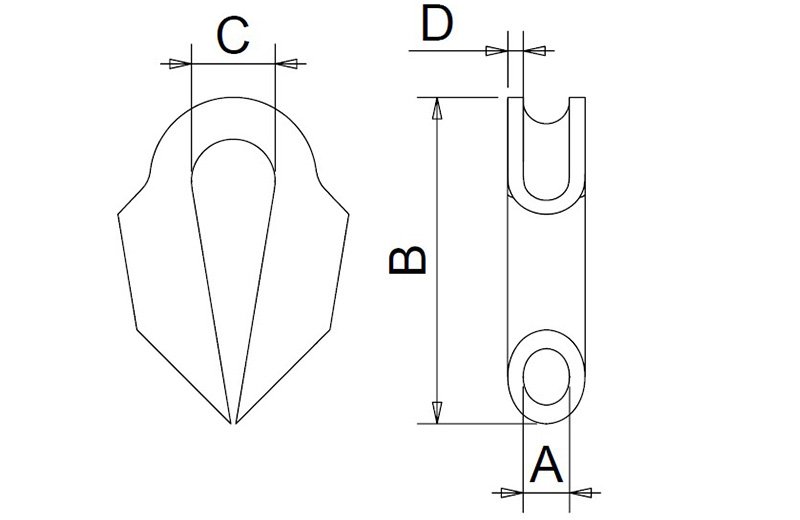

| Art No. | For rope dia | A | B | C | D |
| mm | mm | mm | mm | mm | |
| S.TH06-10 | 10 | 12 | 90 | 23 | 4 |
| S.TH06-12 | 12 | 15 | 105 | 27 | 5 |
| S.TH06-14 | 14 | 17 | 115 | 27 | 4 |
| S.TH06-16 | 16 | 19 | 120 | 32 | 5 |
| S.TH06-18 | 18 | 22 | 140 | 35 | 5 |
| S.TH06-22 | 22 | 25 | 180 | 45 | 6 |
| S.TH06-25 | 25 | 30 | 195 | 47 | 7 |
| S.TH06-32 | 32 | 35 | 215 | 60 | 7 |
| S.TH06-38 | 38 | 45 | 260 | 70 | 7 |
