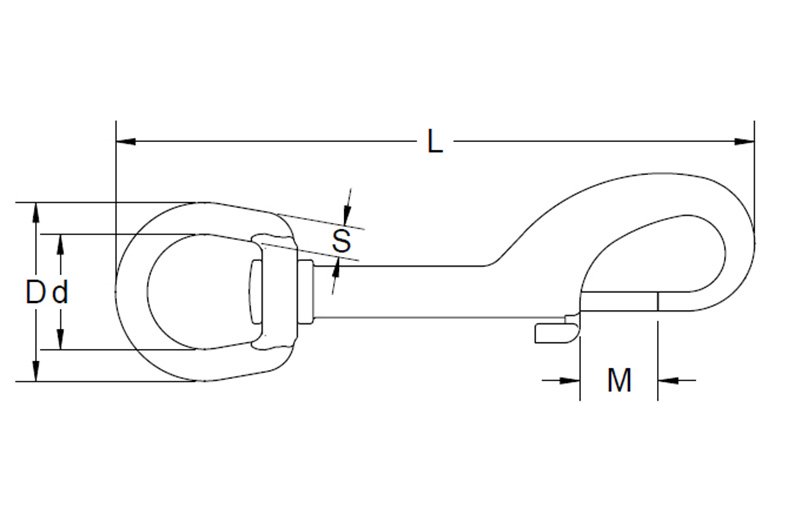

| Art No. | SIZE | L | D | d | S | M | Weight |
| inch | mm | mm | mm | mm | mm | kg/pc | |
| S.SN02-3/8 | 3/8" | 65 | 18 | 10 | 4 | 7 | 0.025 |
| S.SN02-1/2 | 1/2" | 70 | 22 | 13 | 4 | 8 | 0.030 |
| S.SN02-5/8 | 5/8" | 80 | 25 | 16 | 4 | 10 | 0.047 |
| S.SN02-3/4 | 3/4" | 90 | 27 | 20 | 5 | 11 | 0.050 |
| S.SN02-1 | 1" | 102 | 36 | 27 | 6 | 11 | 0.070 |
| S.SN02-5/4 | 1-1/4" | 115 | 44 | 33 | 6 | 12 | 0.128 |
